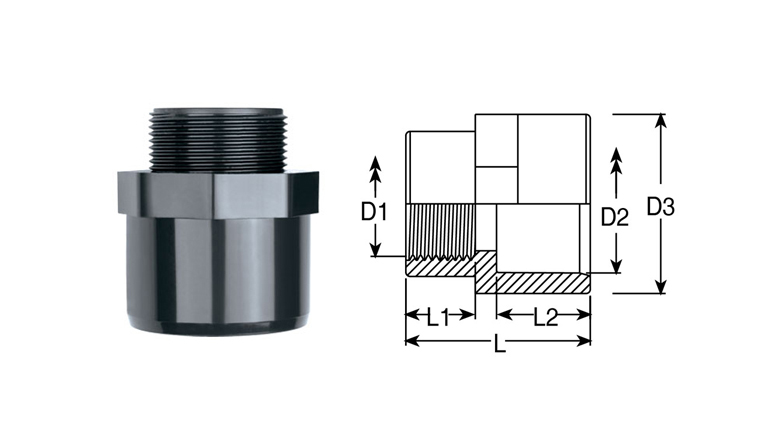

Reducing Female Threaded Adaptor

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: Different pressure ratings ranging from PN 4 to PN 16 kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.


Technical Specifications

CODE
SIZE D (MM) S T TL L
(MM) MIN. MAX. (MM) INCH (MM) (MM)
RFTA025012 25X½ 25.1 25.3 22.0 ½ 15.0 38.0
RFTA032012 32X½ 32.1 32.3 22.0 ½ 15.0 42.0
RFTA032034 32X¾ 32.1 32.3 22.0 ¾ 16.5 43.5
RFTA063100 63X1 63.1 63.3 38.0 1.0 19.0 72.0
RFTA063112 63X1 ½ 63.1 63.3 38.0 1 ½ 21.5 64.5
RFTA075100 75x1 75.1 75.3 44.0 1 19.0 80.0
RFTA075112 75X1 ½ 75.1 75.3 44.0 1 ½ 21.5 70.5
RFTA075200 75X2 75.1 75.3 44 2 26.0 75.0
RFTA090100 90x1 90.1 90.3 51 1 19.0 92.5
RFTA090200 90x2 90.1 90.3 51 2 26.0 82.0
RFTA090212 90x2 ½ 90.1 90.3 51 2 ½ 30.5 89.0
RFTA110100 11Ox1 110.1 110.4 61 1 19.0 106.0
RFTA110212 11Ox2 ½ 110.1 110.4 61 2 ½ 30.0 99.0
RFTA110300 11Ox3 110.1 110.4 61 3 33.5 102.5
Note: The molded fittings are available in different pressure. classes up to PN 16 kg/cm2 as per ISO : 1452. Fittings in other standard and not covered above are also made available on request.
