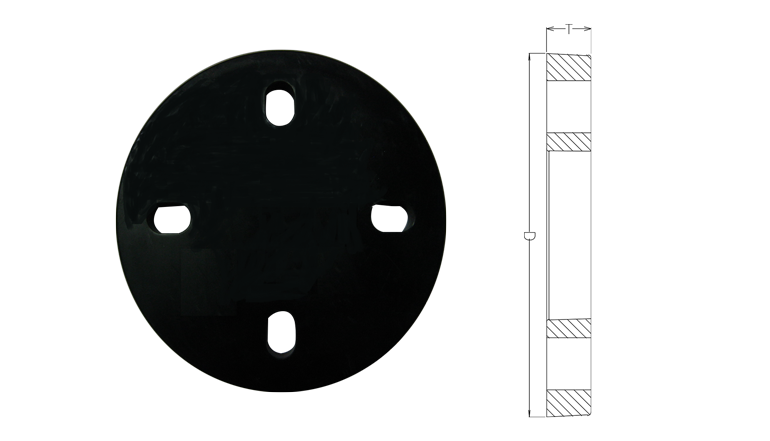

Blind Flange - Universal

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: Different pressure ratings ranging from PN 4 to PN 16 kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.


Technical Specifications

CODE SIZE (MM) D (MM) PCD1 (MM) PCD2 (MM) T (MM) NO.OF HOLES
PFM50 50 151 98 110 20 4
PFM63 63 167 114.0 125.0 20.0 4.0
PFM75 75 188 127.0 145.0 20.0 4.0
PFM90 90 202 146.5 160.5 20.0 8.0
PFM110 110 223 180.0 177.8 20.0 8.0
PFM125 125 258 210.0 210.0 20.0 8.0
PFM140 140 250 210.0 210.0 20.0 8.0
PFM160 160 285 235.0 240.0 20.0 8.0
