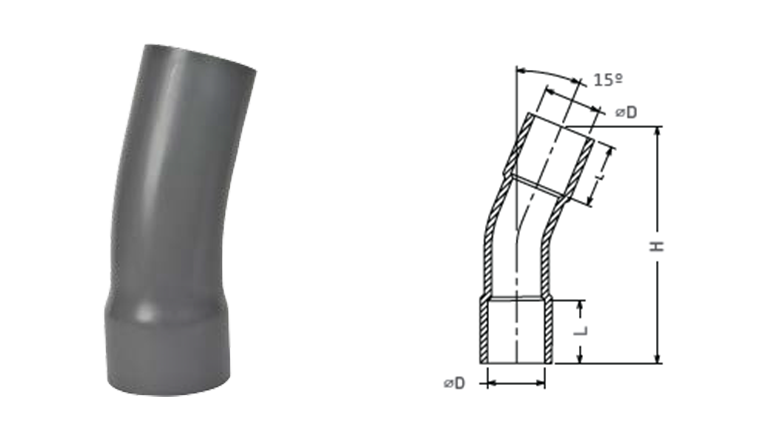

Bend 15° Deg

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.


Technical Specifications

CODE SIZE (ØD) SOCKET LENGTH ( L ) MIN. H MIN.
PVFSBS1520PN10DGCS 20 16.0 70
PVFSBS1525PN10DGCS 25 18.5 80
PVFSBS1532PN10DGCS 32 22.0 100
PVFSBS1540PN10DGCS 40 26.0 110
PVFSBS1550PN10DGCS 50 31.0 140
PVFSBS1563PN10DGCS 63 37.5 180
PVFSBS1575PN10DGCS 75 43.5 205
PVFSBS1590PN10DGCS 90 51.0 240
PVFSBS15110P10DGCS 110 61.0 295
Note :
• All dimensions are in mm.
• All fabricated fittings are available in different pressure classes up to PN 20 kg/cm2 as per ISO : 1452. Fittings in other standard and not covered above are also made available on request.
