RRJ Repair Coupler

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.


Technical Specifications

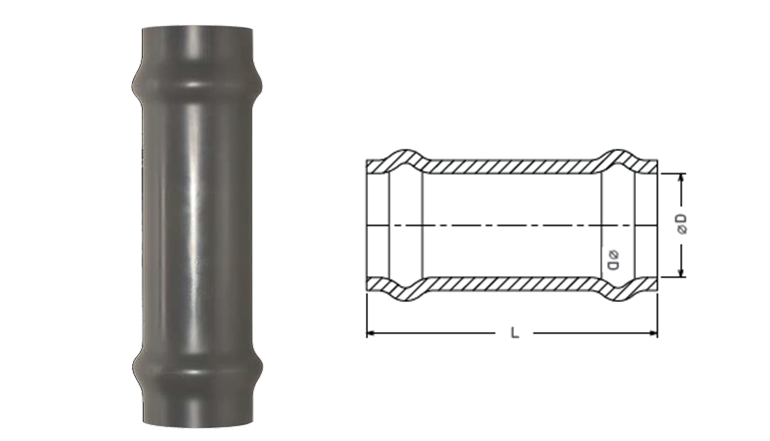

CODE SIZE (ØD) L MIN.
PVFRQC050PN10OL300 50 300.0
PVFRQC063PN10OL270 63 270.0
PVFRQC075PN10OL300 75 300.0
PVFRQC090PN10OL330 90 330.0
PVFRQC110PN10OL370 110 370.0
PVFRQC125PN10OL395 125 395.0
PVFRQC160PN10OL345 160 345.0
PVFRQC200PN10OL545 200 545.0
Note :
• All dimensions are in mm.
• All fabricated fittings are available in different pressure classes up to PN 20 kg/cm2 as per ISO : 1452. Fittings in other standard and not covered above are also made available on request.
