PVC Quick-Fix Reducing Tee

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: 63mm to 500mm in different pressure ratings ranging from PN 4 to PN 16 kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.

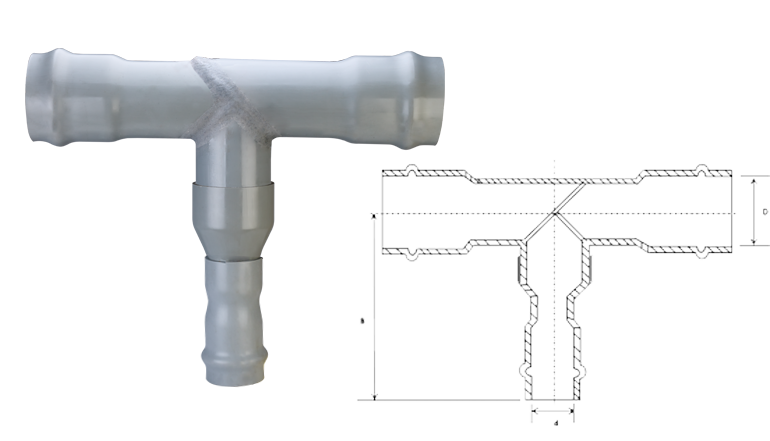

Technical Specifications

Code Size D d
PVFRQT11009008 110x90 111.7 91.5
PVFRQT12511008 125x110 126.9 111.7
PVFRQT14011008 140x110 141.9 111.7
PVFRQT14012508 140x125 141.9 126.9
PVFRQT16014008 160x140 162.1 141.9
PVFRQT20016008 200x160 202.3 162.1
PVFRQT20018008 200x180 202.3 182.2
PVFRQT22520008 225x200 227.5 202.3
PVFRQT25022508 250x225 252.6 227.5
PVFRQT28025008 280x250 283.0 252.6
PVFRQT31528008 315x280 318.3 283.0

Note :
• All dimensions are in mm.
• All fabricated fittings are available in 08 kg/cm² pressure rating. Please specify other pressure ratings as per the requirement viz. 04, 06, 10 kg/cm².
