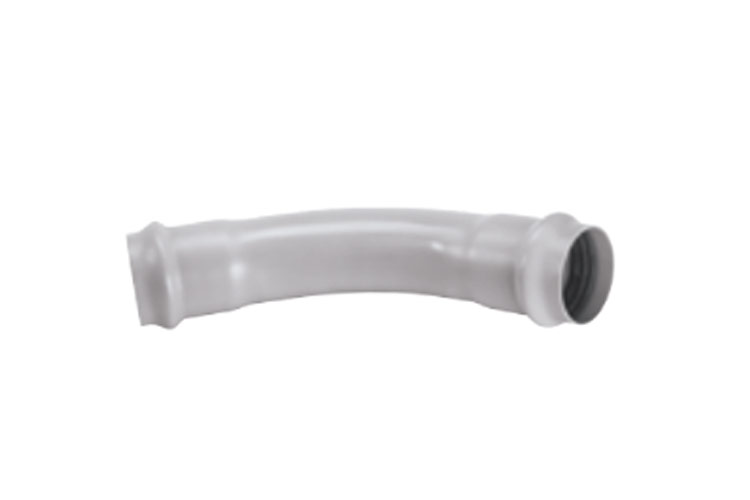

Quick-fix Double socket Bend 11.25°

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: 63mm to 500mm in different pressure ratings ranging from PN 4 to PN 16 kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.


Technical Specifications

Code ND size
Y L R
PVFBQDS11063X10 63 75 107 189
PVFBQDS11075X10 75 89 112 225
PVFBQDS11090X10 90 106 118 270
PVFBQDS11110X10 110 130 127 330
PVFBQDS11125X10 125 148 133 375
PVFBQDS11140X10 140 165 139 420
PVFBQDS11160X10 160 189 146 480
PVFBQDS11180X10 180 213 156 540
PVFBQDS11200X10 200 236 164 600
PVFBQDS11225X10 225 266 175 675
PVFBQDS11250X10 250 295 185 750
PVFBQDS11280X10 280 330 198 840
PVFBQDS11315X10 315 371 215 945
PVFBQDS11355X10 355 419 229 1065
PVFBQDS11400X10 400 471 242 1200
PVFBQDS11450X10 450 530 259 1350
PVFBQDS11500X10 500 589 279 1500
Note :
• All dimensions are in mm.
•Also we can provide Double side socket 6,8,12.5 kg
