Long Bend 90° Deg

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.


JISL also supplies the customer specific fabricated products. One of such products are fabricated bends. These bends are fabricated as per the customer specified specifications and meet the functional test requirements of standard ISO 1452. The bends are fabricated in different bending angles such as 22.5, 30, 45 and 90 degrees.


Technical Specifications

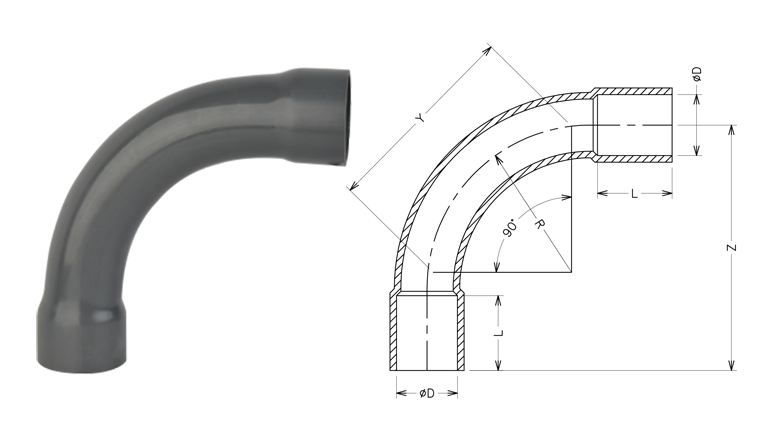

CODE SIZE ( Ø D ) SOCKET LENGTH MIN. Y MIN. R MIN. L MIN.
PVFLBS9020PN10DGCS 20 16.0 95 60 20
PVFLBS9025PN10DGCS 25 18.5 118 75 25
PVFLBS9032PN10DGCS 32 22.0 151 96 32
PVFLBS9040PN10DGCS 40 26.0 189 120 40
PVFLBS9050PN10DGCS 50 31.0 236 150 50
PVFLBS9063PN10DGCS 63 37.5 297 189 63
PVFLBS9075PN10DGCS 75 43.5 354 225 75
PVFLBS9090PN10DGCS 90 51.0 424 270 90
PVFLBS90110P10DGCS 110 61.0 519 330 110
Note :
• All dimensions are in mm.
• All fabricated fittings are available in different pressure classes up to PN 20 kg/cm2 asper ISO : 1452. Fittings in other standard and not covered above are also made available on request.
