Bend 45° Deg

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: 20mm to 630mm in different pressure ratings ranging from PN 4 to PN 16kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.


JISL also supplies the customer specific fabricated products. One of such products are fabricated bends. These bends are fabricated as per the customer specified specifications and meet the functional test requirements of standard ISO 1452. The bends are fabricated in different bending angles such as 22.5, 30, 45 and 90 degrees.


Technical Specifications

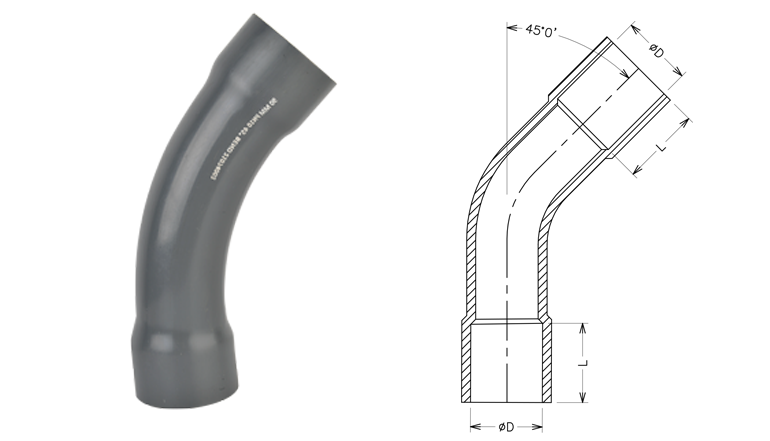

CODE SIZE (ØD) SOCKET LENGTH ( L ) MIN. Z MIN. H MIN.
PVFSBS4520PN10DGCS 20 16.0 40 85
PVFSBS4525PN10DGCS 25 18.5 45 90
PVFSBS4532PN10DGCS 32 22.0 52 106
PVFSBS4540PN10DGCS 40 26.0 70 147
PVFSBS4550PN10DGCS 50 31.0 80 193
PVFSBS4563P10DGISO 63 37.5 93 208
PVFSBS4575P10DGISO 75 43.5 100 245
PVFSBS4590P10DGISO 90 51.0 130 297
PVFSBS45110P10DGIO 110 61.0 160 370
Note :
• All dimensions are in mm.
• All fabricated fittings are available in different pressure classes up to PN 20 kg/cm2 as per ISO : 1452. Fittings in other standard and not covered above are also made available on request.
