Adaptor

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.


Technical Specifications

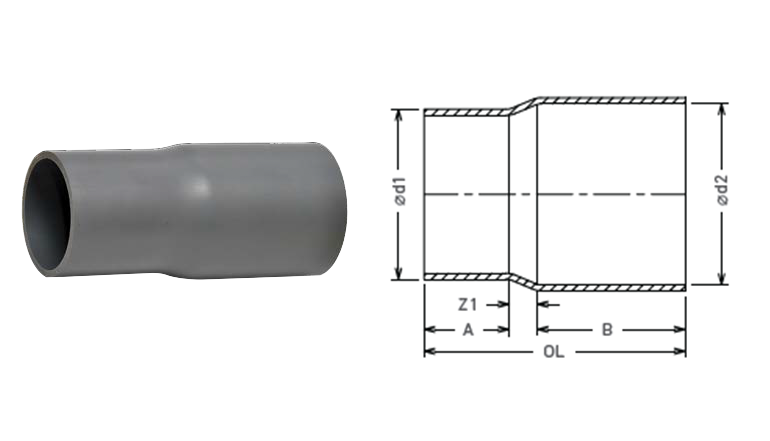

CODE SIZE (ØD) SOCKET LENGTH (B) MIN A MIN Z1 MIN OL MIN. Ø D1 MIN. Ø D2 MIN. + 0.3
PVFAdaptor50PN10DG 50 62.0 31 10 108 50 50
PVFAdaptor63PN10DG 63 76.0 38 10 124 63 63
Note :
• All dimensions are in mm.
• All fabricated fittings are available in different pressure classes up to PN 20 kg/cm2 as per ISO : 1452. Fittings in other standard and not covered above are also made available on request.
