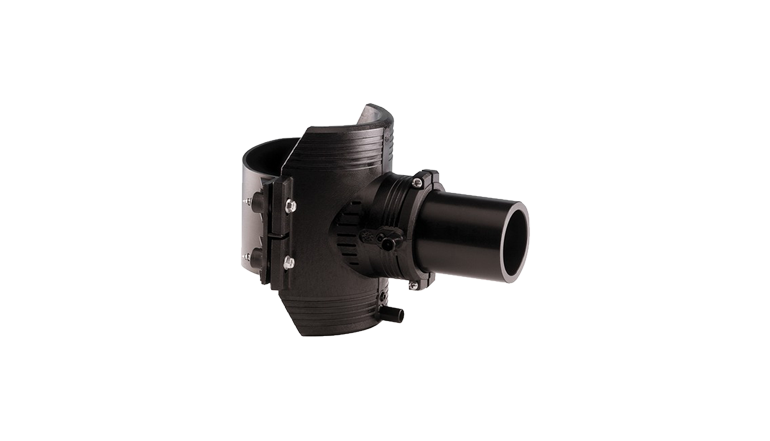

Spigot Saddle

Welcome to Jain Irrigation Systems Ltd.

Spigot Saddle

Features & Benefits

PE 100 SDR 11 (ISO S5)
10 bar Gas
Complete with lower part
4 mm pin connectors
Limited path fusion indicators
d315 - 400 mm: application is limited on pipes d355 and d400 mm. Not suitable for pipes if larger wall thickness than SDR 17 pipes.
**Delivery without lower part for assembling as Top Load with tool no. 799.350.477; angle adaptor (799.350.340) for fusion cable required

Technical Specifications

	d [mm]	d1 [mm]	Code	Wt [kg]	d2 mm]	H [mm]	H1 [mm]	L [mm]
	63	32	193 131 234	0.434	19	145	50	165
	63	63	193 131 237	0.630	32	152	50	165
	75	32	193 131 244	0.634	19	151	50	165
	75	63	193 131 247	0.536	32	158	50	165
	90	32	193 131 254	0.508	19	158	50	165
	90	63	193 131 257	0.573	32	165	50	165
	110	32	193 131 264	0.590	19	168	50	165
	110	63	193 131 267	0.600	32	175	50	165
	125	32	193 131 274	0.594	19	176	50	165
	125	63	193 131 277	0.660	32	183	50	165
	140	32	193 131 284	0.638	19	183	50	165
	140	63	193 131 287	0.594	32	190	50	165
	160	32	193 131 294	0.600	19	193	50	165
	160	63	193 131 297	0.658	32	200	50	165
	180	32	193 131 304	0.742	19	203	50	165
	180	63	193 131 307	0.771	32	210	50	165
	200	32	193 131 314	0.766	19	213	50	165
	200	63	193 131 317	0.762	32	220	50	165
	225	32	193 131 324	0.730	19	226	50	165
	225	63	193 131 327	0.782	32	233	50	165
	250	32	193 131 334	0.741	19	238	50	165
	250	63	193 131 337	0.792	32	245	50	165
*	280	63	193 131 347	0.400	35	245	50	165
*	315-355	63	193 131 357	0.503	35	245	50	165
*	400	63	193 131 377	0.400	35	245	50	165
