Reducer -2
Reducer -2
Features & Benefits
- PE 100 SDR 11 (ISO S5)
- 10 bar Gas
- 4 mm pin connectors
- Limited path fusion indicators
- Two separate fusion zones

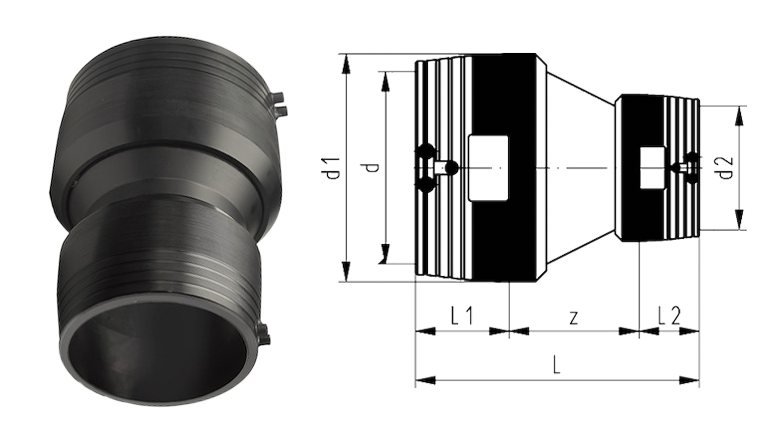

Technical Specifications
| d [mm] |
d2 [mm] |
Code | Wt [kg] |
d1 [mm] |
L [mm] |
L1 [mm] |
L2 [mm] |
z [mm] |
| 200 | 160 | 753 901 837 | 5.098 | 250 | 365 | 104 | 90 | 171 |
| 225 | 160 | 753 901 838 | 6.000 | 280 | 385 | 112 | 90 | 183 |
| 250 | 160 | 753 901 840 | 7.860 | 310 | 400 | 123 | 90 | 187 |
| 250 | 200 | 753 901 841 | 8.480 | 310 | 427 | 123 | 104 | 200 |
