Electrofusion saddle
Electrofusion saddle
Features & Benefits
PE 100 SDR 11 (ISO S5)
- 10 bar Gas
- Complete with lower part
- *Complete with moulded-on lower part
- 4 mm pin connectors
- Limited path fusion indicators
- ** Delivery without lower part for assembling as Top Load with tool no. 799.350.477 Not suitable for all tapping-tees, tappingvalves and spigots with cutter of the modular systems, SDR compatibility according to individual parts
Technical Specifications

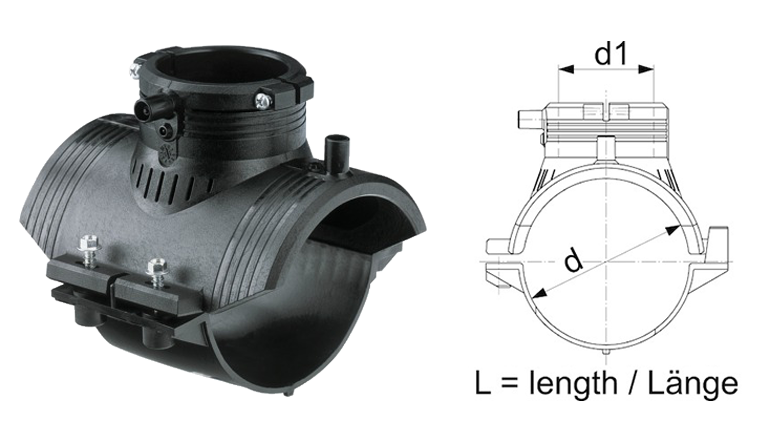

| d [mm] | d1 [mm] | Code | Weight [kg] | L [mm] | |
| 63 | 63 | 193 131 037 | 0.325 | 165 | |
| 75 | 63 | 193 131 047 | 0.455 | 165 | |
| 90 | 63 | 193 131 057 | 0.415 | 165 | |
| 110 | 63 | 193 131 067 | 0.458 | 165 | |
| * | 110 | 63 | 193 133 067 | 0.240 | 182 |
| 125 | 63 | 193 131 077 | 0.502 | 165 | |
| 140 | 63 | 193 131 087 | 0.523 | 165 | |
| 160 | 63 | 193 131 097 | 0.493 | 165 | |
| * | 160 | 63 | 193 133 097 | 0.543 | 182 |
| 180 | 63 | 193 131 107 | 0.600 | 165 | |
| 200 | 63 | 193 131 117 | 0.634 | 165 | |
| 225 | 63 | 193 131 127 | 0.618 | 165 | |
| 250 | 63 | 193 131 137 | 0.627 | 165 | |
| 280 | 63 | 193 131 147 | 0.359 | 165 | |
| 315-355 | 63 | 193 131 157 | 0.373 | 165 | |
| 400 | 63 | 193 131 177 | 0.356 | 165 |
