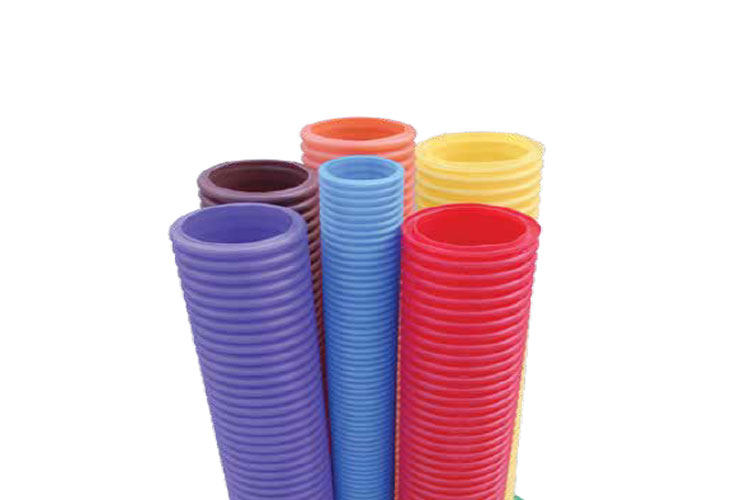

PE Corrugated Sewerage Piping System

Single/Double Wall(SWC/DWC)-OD/ID (mm) 63/52, 75/62, 90/77, 120/106, 125/103, 180/153, 200/173, 250/215
Double Wall(DWC)-Internal Dia.(mm) 135, 250, 300, 400, 500
Straight Lengths of 6/12 m,all sizes & in coils upto 125mm OD in defferent colours.

PE Corrugated pipes are an ideal blend of structural strength and flexibility that servers well in buried or unburied conditions. As a conduit system PE corrugated pipes are used for the protection of insulated conductors, cables in electrical and communication systems and high tension power cable installation. PE itself is an extremely versatile piping material with many properties that makes it ideal for use in underground and above ground conduit systems. The lightweight PE allows for easier and less costly transportation and installation cost. Not brittle or rigidly hard, it is not easily susceptible to cracking during pipe handling and installation activities.

Once formed into corrugated pipes, PE pipe is resistant to abrasion, corrosion, chemical scouring and is structurally strong with the ability to support large loads. PE corrugated pipe is a flexible piping system that performs well in both high cover and low cover applications. Its unique ability to support and distribute live and dead load enables it to meet almost every installation condition. PE corrugated piping systems are specified and extensively used as cable ducts in Railway, BSNL and other private companies, OFC backbone routes, Public Works Departments/CPWD, State & National Highways/NHAI, Metro Traffic Signal projects, Airports etc.

Applications

Sewerage System
Underground Gravity Piping System
Rain Water Disposal system under tracks in the Metro–Rails and high way Road Bridges

Features & Benefits

Standards IS 16098 (Part 2)
Available in straight lengths of 6/12 meters for all sizes and in coils upto 125 mm OD in defferent colours.
The biggest concern facing communities with a nd high way Road Bridges. deteriorating sewage system is the cost of installation and surface disruption.
PE Corrugated pipes are an ideal blend of structural strength and flexibility that servers well in buried or unburied conditions.
PE itself is an extremely versatile piping material with many properties that makes ideal for use in underground and above ground conduit systems. The lightweight PE allows for easier and less costly transportation and installation cost. Not brittle or rigidly hard, it is not easily susceptible to cracking during pipe handling and installation activities. Once formed in to a corrugated pipes, PE pipe is resistant to abrasion, corrosion, chemical scouring and is structurally strong with the ability to support large loads. PE corrugated pipe is a flexible piping system that performs well in both high cover and low cover applications. Its unique ability to support and distribute live and dead load enables it to meet almost every installation conditions.
Polyethylene Pipe promises to be a long-term and cost effective solution to this problem. It is well suited for a wide range of sewage applications in all sorts of circumstances. Its inherent physical characteristics make it impervious to the extremely aggressive and corrosive materials associated with sewage systems.
