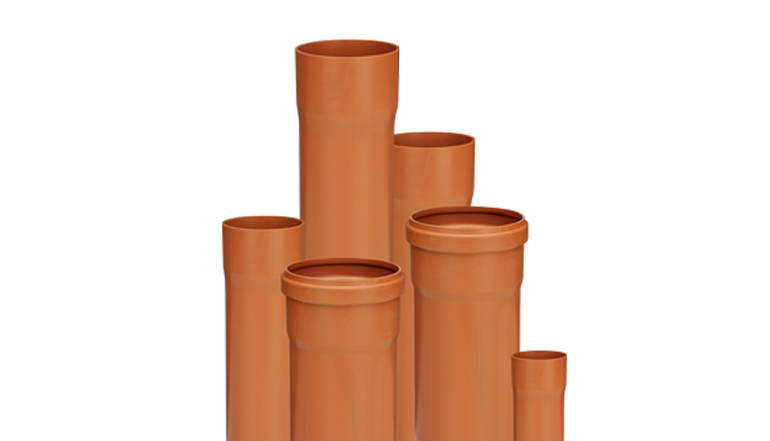

JISL from its noble range brings to you JAIN PVC Underground Drainage Systems. JAIN’S PVC UDS system is the ideal piping solution for all your Underground Drainage and Sewerage requirement in Residential and Commercial Colonies, Townships, Urban and Rural Sewerage transmission. Jains PVC UDS Piping system are manufactured as per major national & international standards and parameters.

Features & Advantages

  • Light in weight and strong
  • Uniform wall thickness
  • Inner smooth surface, no blockages
  • Available in solvent weld and EPDM ring fit joints
  • Maintenance free
  • Corrosion proof
  • 100% water tight and free fromunderground ill effects
  • Easy and quick to install
  • Hygienic and safe
  • Durable
  • Minimizes excavation cost
  • Easy to install
  • Durable fo rmore than 50 years
  • Economical
  • Corrosion Resistant
  • No Electrical tools required
  • Excellent Earth Load bearing strength

Pipe Dimension Chart

Nominal Ring Stiffness SN (KN/m2) 2 4 8
Standard Dimension Ration (SDR) 51 41 34
Sr. no. Nominal outside Diameter (MM) Minimum Wall Thickness (MM)
1 110 - - 3.2
2 125 - 3.2 3.7
3 160 3.2 4.0 4.7
4 200 3.9 4.9 5.9
5 250 4.9 6.2 7.3
6 315 6.2 7.7 9.2
7 400 7.9 9.8 11.7
8 500 9.8 12.3 14.6
9 630 12.3 15.4 18.4

Installation Procedure

Rubber Ring Joints:

1) Jain UDS pipe can be cut easily with saw

2) A slight bevel will ease the entry of the pipe into the socket.

3) Apply lubricant on the external surface of the pipe and on the elastomeric ring

4) Make sure the sealing ring is placed correctly in the groove.

5) Push the pipe into the socket

6) Ensure 10mm gap between the pipe end the socket register for thermal expansion and contraction

Solvent Welded Joint:

1) Jain UDS pipe can be cut easily with saw

2) Remove all burrs & grease if any, from the internal & external surfaces

3) Apply solvent cement uniformly on the inner surface of fitting & outer surface of pipe

4) Insert the pipe end in to socket end & push it fully in turn around pipe for 45° wait for curing time
