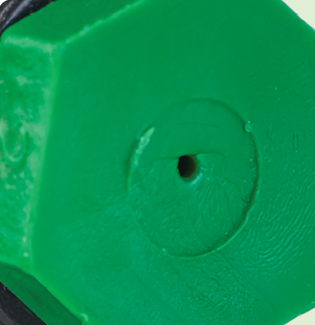

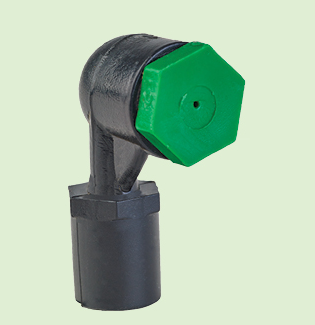

Jain Fogger




  • Manufactured from stable engineering plastic.
  • Simple construction with no moving parts, minimises maintenance.
  • Designed for misty spray. Gives very fine droplets.

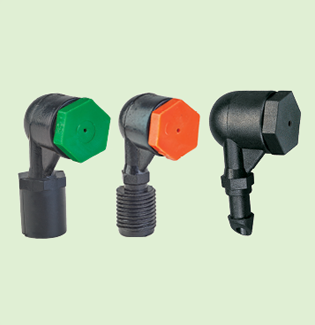

  • Coloured nozzles for various flow rates.
  • Easy to disassemble & clean.
  • Recommended operating pressure 3.0 kg/cm² (42.66 psi).

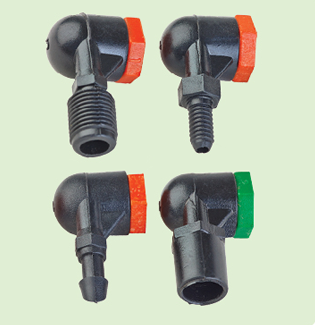

  • Available in following inlet options:
    a. 4 mm barbed inlet.
    b. 5/32” (4mm) 10-28 UNS screwed inlet.
    c. Push fit type inlet.
  • Minimum filtration requirement 75 micron.

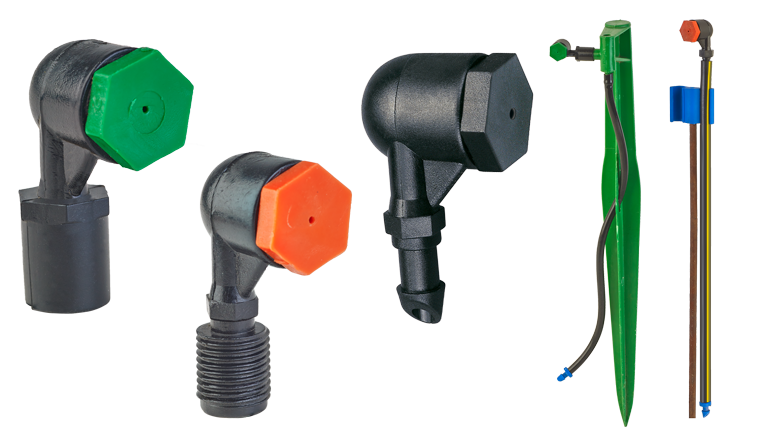

  • Easy to install with different mounting options
    a. For Fogger with barbed inlet-
      I. Can be mounted directly on polytube or 6 mm OD extension tube or vinyl tube.
    b. For Fogger with 5/32” (4mm) 10-28 UNS screwed inlet-
       I. Clip Stake for J-Jets / Foggers / Misters (Code: DCSJ) with rigid riser of suitable length.
       II. Stake for Modular / J-Jets / Foggers / Misters (Code : DSJF4 / DSJF8)
       III. Square stake for J-Jets / Foggers / Misters (Code : DSSJ)
    c. For Fogger with push fit inlet -
       I. Can be mounted directly on polytube or 6 mm OD extension tube or vinyl tube.
  • Fogger assembly options available on demand.
