Features and Specifications:
-

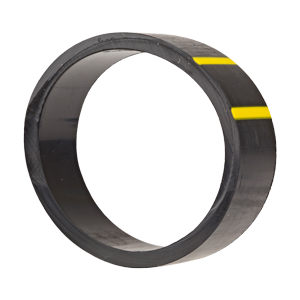

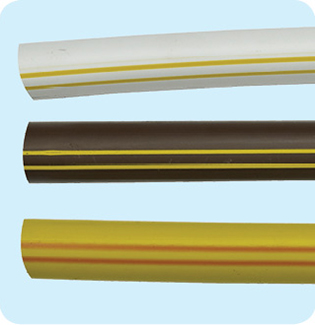

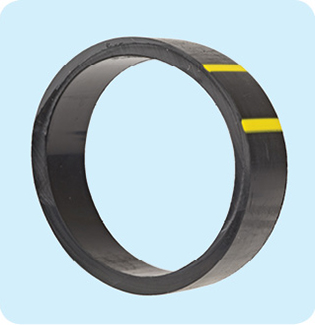

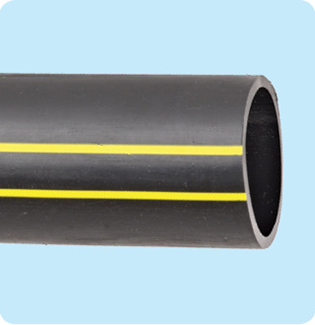

Black in color with two parallel yellow strips - ‘TwinLine™’.
-
Manufactured from virgin LLDPE using advanced extrusion
technology.
-
Excellent characteristics of LLDPE provide durable
tubing with close dimensional tolerances.
-
UV stabilized.
-
No environmental effects.
-

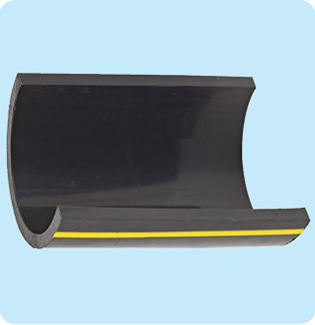

Smooth inner surface minimizes frictional losses.
-

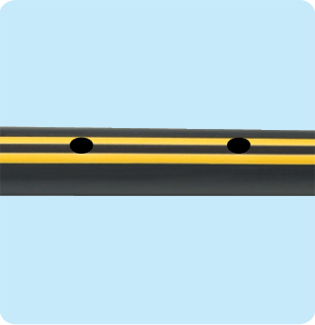

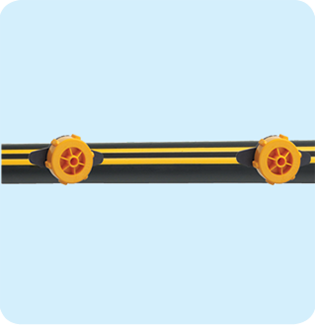

Pre-punched tubing can be supplied on demand.
-
Manufactured as per IS / ISO/ ASAE / AS / ASTM standards.
-
Each batch is tested for the following parameters:
- Dimensional tolerances.
- Short term & long term hydraulic pressure.
- Heat reversion.
- Carbon black content.
- Environmental stress crack resistance (ESCR).
- Accelerated weathering.
- Tensile Strength and Elongation.
Applications:
|

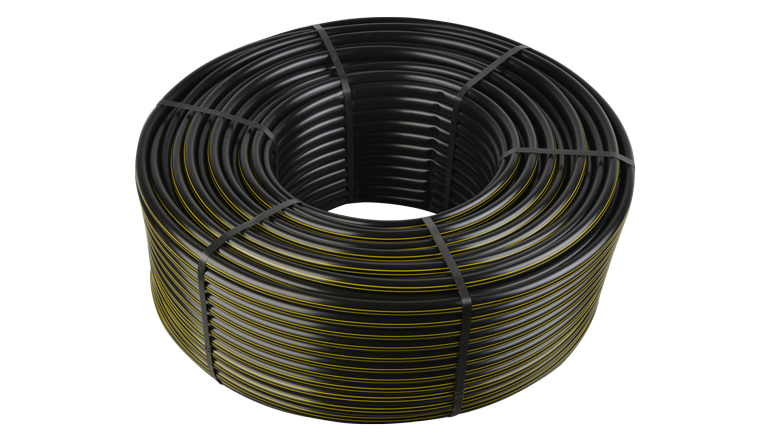

Jain Tough Hose - Twin-Line® Drip Polytube
Code
Diameter |
Nominal
ID |
Inside Diameter |
Min. Wall
Thickness |
Std. Coil
Length |
Avg.
Weight per |
| mm |
mm |
mm |
m |
kg. |
lbs. |
|
Pressure Class 1 - Working Pressure upto 3.0 kg/cm² |
| PT121 |
12 |
10.8 |
0.6 |
500 |
11.7 |
25.70 |
| PT161 |
16 |
14.4 |
0.8 |
300 |
12.0 |
26.40 |
| PT201 |
20 |
18.2 |
0.9 |
250 |
14.0 |
30.80 |
| PT251 |
25 |
22.6 |
1.2 |
200 |
19.5 |
42.90 |
| PT321 |
32 |
29.0 |
1.5 |
100 |
15.2 |
33.40 |
Pressure Class 2 - Working Pressure upto 4.0 kg/cm² |
| PT122 |
12 |
10.2 |
0.9 |
500 |
16.3 |
35.70 |
| PT162 |
16 |
13.8 |
1.1 |
300 |
15.8 |
34.80 |
| PT202 |
20 |
17.6 |
1.2 |
250 |
18.0 |
39.60 |
| PT252 |
25 |
21.6 |
1.7 |
200 |
25.3 |
55.70 |
| PT321 |
32 |
28.0 |
2.0 |
100 |
19.4 |
42.70 |
|
Ordering Specifications:
Example:PT121 - This code refers
to Jain Tough Hose - Twin-Line® Drip Polytube of nominal diameter 12 mm and of pressure class 1.
-
Jain Irrigation Systems Ltd. are the owners of Trade
Mark “Twin-Line™”.
-
Jain Irrigation Systems Ltd. has the statutory right
to use the artistic work of two yellow or golden parallel strips on
a black tube for irrigation, under the Copyright Act 1957, India.
|
Jain Tough Hose - Twin-Line® as per Jain's Standards:
Code
Diameter |
Nom. Dia. |
Inside Diameter |
Min. Wall Thickness |
Working Pressure |
Std. Coil Length |
Avg. Weight per Coil |
| mm |
mm |
inch |
mm |
inch |
kg/cm² |
psi |
m |
ft |
kg. |
lbs. |
| THI04094 |
4 |
4.24 |
0.167 |
0.94 |
0.037 |
10.8 |
154 |
250 |
820 |
3.84 |
8.40 |
| THI06114 |
6 |
6.22 |
0.245 |
1.14 |
0.045 |
9.3 |
132 |
250 |
820 |
6.53 |
14.4 |
| THI13095 |
13 |
13.00 |
0.512 |
0.95 |
0.037 |
3.7 |
52 |
500 |
1640 |
21.66 |
47.7 |
| THI13110 |
13 |
13.00 |
0.512 |
1.10 |
0.043 |
4.2 |
59 |
500 |
1640 |
25.02 |
55.0 |
| THI13140 |
13 |
13.10 |
0.512 |
1.40 |
0.055 |
5.1 |
72 |
500 |
1640 |
31.94 |
70.3 |
| THI16140 |
16 |
16.00 |
0.630 |
1.40 |
0.055 |
4.3 |
61 |
300 |
984 |
23.13 |
51.1 |
| THI16110 |
16 |
16.00 |
0.630 |
1.10 |
0.043 |
3.5 |
49 |
300 |
984 |
18.19 |
40.0 |
| THI18110 |
18 |
18.00 |
0.709 |
1.10 |
0.043 |
3.1 |
44 |
300 |
984 |
20.30 |
44.7 |
| THI19140 |
19 |
19.00 |
0.748 |
1.40 |
0.055 |
3.6 |
51 |
300 |
984 |
27.10 |
59.6 |
| THI20145 |
20 |
20.42 |
0.804 |
1.45 |
0.057 |
3.9 |
56 |
200 |
656 |
23.35 |
51.4 |
| THI25140 |
25 |
25.00 |
0.984 |
1.40 |
0.055 |
2.8 |
39 |
200 |
656 |
15.79 |
34.7 |
| THI26170 |
26 |
26.82 |
1.055 |
1.70 |
0.067 |
3.6 |
51 |
200 |
656 |
18.94 |
41.6 |
| THI32150 |
32 |
32.00 |
1.260 |
1.50 |
0.059 |
2.4 |
34 |
100 |
328 |
28.53 |
62.7 |
Example: Inside diameter based
tubing. |
Jain Tough Hose - Twin-Line® as per AS-2698-1:
Code
Diameter |
Nom.Dia. |
Inside Diameter |
Min. Wall Thickness |
Std. Coil Length |
Avg. Weight per Coil |
| mm |
mm |
inch |
mm |
inch |
m |
Kg. |
lbs. |
| THI10100 |
10 |
9.8 |
0.385 |
1.0 |
0.039 |
300 |
9.52 |
20.94 |
| THI13120 |
13 |
12.7 |
0.500 |
1.2 |
0.047 |
300 |
14.70 |
32.34 |
| THI16120 |
16 |
15.8 |
0.622 |
1.2 |
0.047 |
200 |
11.99 |
26.37 |
| THI19130 |
19 |
18.9 |
0.744 |
1.3 |
0.051 |
200 |
15.43 |
33.94 |
| THI25150 |
25 |
25.2 |
0.992 |
1.5 |
0.059 |
200 |
23.53 |
51.76 |
| THI32200 |
32 |
31.5 |
1.240 |
2.0 |
0.078 |
100 |
19.68 |
43.29 |
Example: Inside diameter based tubing. |
| Reference Code |
Nominal Diameter |
Outside Diameter |
Material-PE2305 |
Material - PE2306, PE2406, PE3306, PE3406, *PE3408 |
Material- PE3408 |
Maximum Pressure |
Standard Coil Length |
| SDR7.3 |
SDR9 |
SDR11 |
at 23ºC
(73.4ºF) |
at 37.8 ºC
(100ºF) |
| Min. Wall Thickness |
Min. Wall
Thickness |
Min. Wall Thickness |
| mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
kg/cm² |
psi |
kg/cm² |
psi |
m |
feet |
| THO13XX |
13 |
1/2 |
15.9 |
0.625 |
2.2 |
0.086 |
1.8 |
0.069 |
1.6 |
0.062 |
11.3 |
160 |
8.8 |
125 |
500 |
1640 |
| THO16XX |
16 |
5/8 |
19.1 |
0.75 |
2.6 |
0.103 |
2.1 |
0.083 |
1.7 |
0.068 |
11.3 |
160 |
8.8 |
125 |
500 |
1640 |
| THO19XX |
19 |
3/4 |
22.2 |
0.875 |
3.0 |
0.12 |
2.5 |
0.097 |
2.0 |
0.08 |
11.3 |
160 |
8.8 |
125 |
300 |
984 |
| THO25XX |
25 |
1 |
28.6 |
1.125 |
3.9 |
0.154 |
3.2 |
0.125 |
2.6 |
0.102 |
11.3 |
160 |
8.8 |
125 |
200 |
656 |
| THO32XX |
32 |
1 1/4 |
34.9 |
1.375 |
4.8 |
0.188 |
3.9 |
0.153 |
3.2 |
0.125 |
11.3 |
160 |
8.8 |
125 |
100 |
328 |
| THO38XX |
38 |
1 1/2 |
41.3 |
1.625 |
5.9 |
0.233 |
4.6 |
0.181 |
3.8 |
0.148 |
11.3 |
160 |
8.8 |
125 |
100 |
328 |
| THO51XX |
51 |
2 |
54.0 |
2.125 |
7.4 |
0.291 |
6.0 |
0.236 |
4.9 |
0.193 |
11.3 |
160 |
8.8 |
125 |
50 |
164 |
* Maximum working pressure for PE3408 and SDR 9 is 13.8kg/cm² (200 psi) at 23ºC (73.4ºF) and is 11.3 kg/cm² at 37.8ºC (100ºC) |
|
Ordering Specifications:
Example: THI13140 this code
refers to Jain Tough Hose of nominal diameter 13 mm and wall thickness of
1.40 mm.
- For pre punched Jain Tough Hose. change code as.
Note: - Please refer standard specification table while
ordering.
- Jain Tough Hose in any other wall thickness & / or
coil length can be manufactured and supplied as a special order.
|
|
|
|
 |
|
