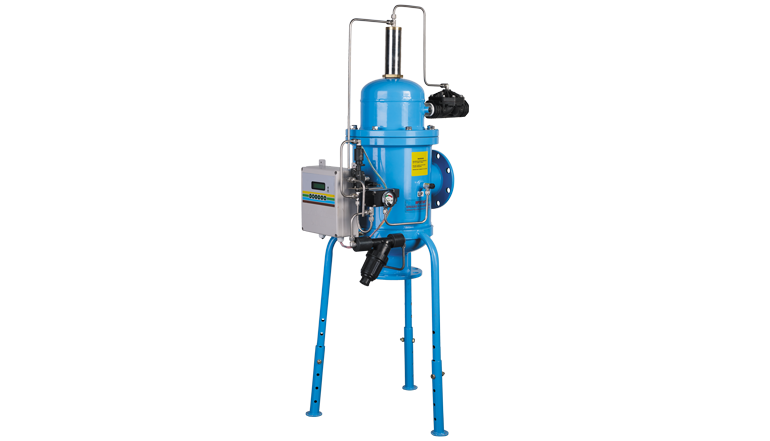

Smart Clean - VHO

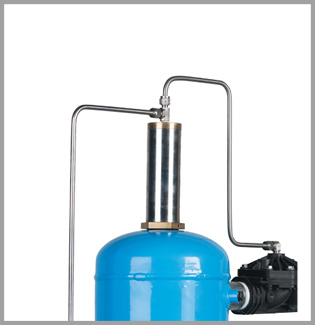

  • Hydraulic Flushing Mechanism Hydraulic flushing mechanism according to pressure differential pilot with Rinse Controller
  • Self-Suction Cleaning Mechanism Cleaning of the filter is carried out by the suction smart scanner which rotates spirally across the screen
  • Unique Smart Scan ElementEquipped with Smart-Scan, Unique filtering element, to assure high performance and effective filtration
  • Standard Polyester Coating for Protection from Corrosion Coated with more than 70 micron thick deep blue OR deep red colored Polyester powder from outside and epoxy powder from inside surface for protection against corrosion and weather effects
  • Mild steel Construction.

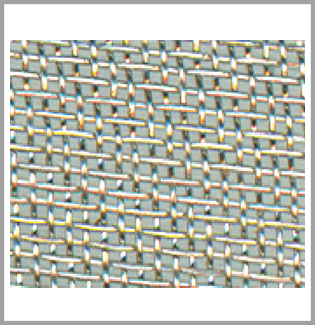

  • Available in standard mesh of 100 micron size. (other mesh sizes available On demand).
  • Flow direction from outside of the element to inside (In to Out).
  • Maximum operating pressure 10 kg/cm² (142 psi).
  • Smart Clean filter can also be supplied in stainless steel body
  • The most efficient hydraulic filters that require no external power source.
  • No interruption of downstream flow during flushing.
  • Minimal volume of reject water.
  • Minimum water consumption during the self cleaning process.
  • Continuous supply of filtered water to the irrigation net work.
  • No need electricity, Hydraulically operated.
  • Easy handling and minimum maintenance
  • High resistance to the weather changes.
