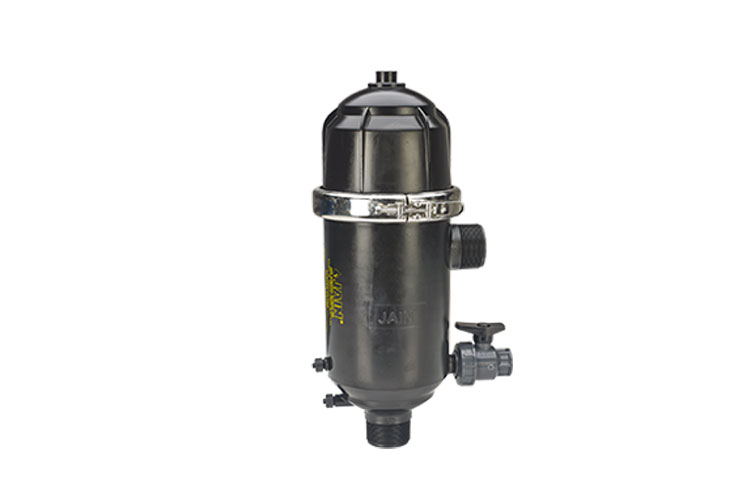

Disclean® PL Filter Silver




  • Radially Convergent Grooved Discs Disclean® element with strong, precision engineered and radially grooved disc to provide fine three dimensional filtration. (Flow direction Out to In).

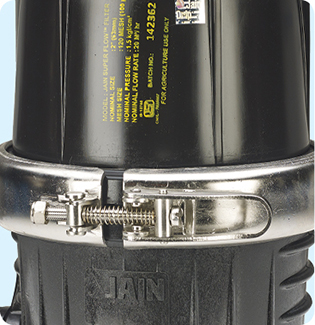

  • Easy for Maintenance Strong and smooth opening, drip–tight SS clamp closure.
  • Angular or Straight Outlet Option Available Optional two outlet positions facilitates installation in angular or straight fashion

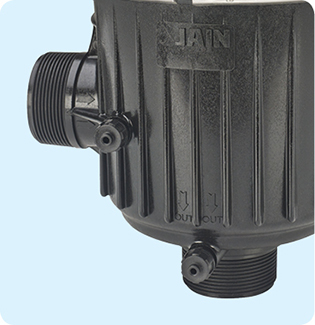

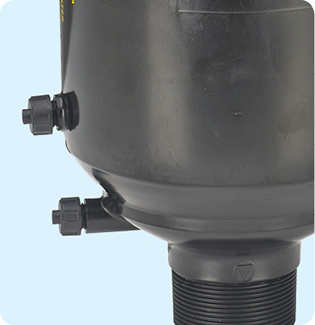

  • Equipped with Pressure Check Assembly To check pressure from inlet side and outlet side, additional Pressure check assembly provided.

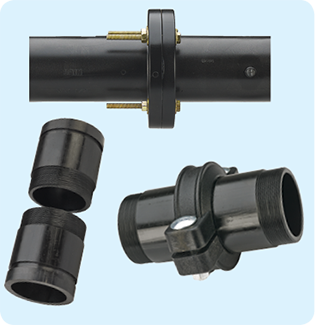

  • Various Connection Options Available Threades connection, Flanged connection or Easy Fix connection available

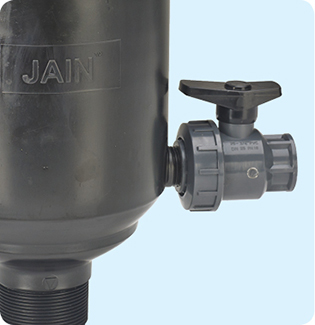

  • Draining Facility Available Additional Drain Valve provided to remove dirt from filter
  • Manufactured from special plastic alloy material which gives very high stiffness, toughness, heat and impact resistance.
  • Excellent chemical and weather resistance.
  • Ribbed body construction, designed to withstand water hammer and surges in the pipe line.
  • Maximum operating pressure 6 kg/cm² (85.2 psi).
  • Available in standard filtration 130 micron. (Other mesh sizes are available On demand)
  • Available in 2" (20 & 25 m³/hr), 2 ½" (30 m³/hr) and 3"(40 & 50 m3/hr) inlet & outlet connection sizes.
  • On demand, Disclean – PL can also be supplied with automatic flushing arrangement.
