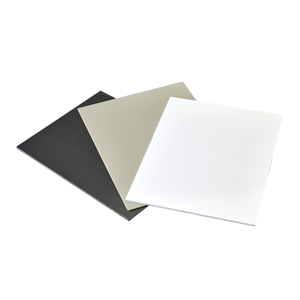

PVC Rigid Sheet
|
Ex-cel® PVC Rigid sheet is extruded from Environmental friendly compound having smooth & glossy surface finish.
Main Features
- Smooth & Gloss
- Easy to Fabricate
- Good Printability
- Low Flammability
- Non Corrosive
- Non Toxic
- High Impact Strength
- Good Sound & Thermal Insulation
- Self Extinguishing
- Resistance to Oscillation & Vibration
|
Suitable For
- Cutting
-
Sawing
- Shearing
- Punching
- Drilling
- Milling
- Rivetting
- Welding
- Painting
- Embossing
- Photo Mounting
- Engraving
|

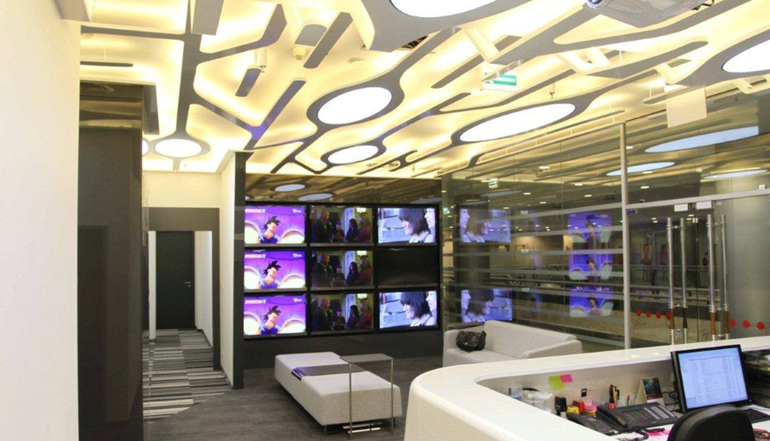

Applications
- Advertising Signs
- Displays
- Walls and Partitions
- Bathroom Fittings
- Models & Prototypes
- Panels & Cabin
- Embossing & Engraving
- Point of sale
- Switch Board
- Ventilation Duct
|
|
Product Range |
| Code |
Colour |
Thickness |
Std. Width |
Std. Length |
| mm |
inch |
mm |
inch |
J7011
J7010
J7016
J7032 |
Grey
White
____ |
2 to 12.7mm |
1000
1220
1500 |
39
48
59 |
2000
2440
3050 |
79
96
120 |
Properties are based on 3 mm sheet
|
Technical Properties |
| Properties |
Test |
Unit |
Value |
Physical |
| Density |
DIN53479 |
g/cc |
1.40 to 1.46 |
| Hardness |
DIN53505 |
Shore 'D' |
80 |
| Hardness Water Absorption |
DIN53490 |
% |
0.1 |
Mechanical |
| Tensile Strength |
DIN53455 |
MPa |
≥ 45 |
| Elongation at Break |
DIN53455 |
% |
≥ 60 |
| E Modulus |
DIN 53457 |
MPa |
2500 - 3000 |
| Charpy Impact Strength |
DIN 53253 |
KJ/M² |
≥ 7.5 |
| Izod Impact Strength |
ASTM D256 |
KJ/M² |
No Break |
| Charpy Impact Strength |
DIN 53253 |
KJ/M² |
> 7.5 |
| Flexural Strength |
DIN 53452 |
MPa |
80 |
Drop Impact Strength
(Height : 1.8 m & mass : 0.3 kg x thickness) |
IS 6307 |
-- |
Pass |
| Compressive Strength at 10% Deformation |
DIN 53421 |
MPa |
60 |
Thermal |
| Vicat (B/50) |
DIN 53460 |
ºC |
80 |
| Heat Deflection Temperature @ 1.8 MPa |
DIN 53461 |
ºC |
65 |
| Coefficient of linear Thermal Expansion |
ASTM D 696 |
ºC-1 |
7.07 x 10-5 |
Electrical |
| Surface Resistivity |
ASTM D 257 |
W |
2.8 X 10 16 |
| Volume Resistivity |
ASTM D 257 |
W-cm |
8.1 x 10 15 |
| Dielectric Constant at 1 MHZ |
ASTM D 150 |
- |
3.13 |
| Dielectric Strength |
DIN IEC 243 |
KV/mm |
16.8 |
| Dimensional Change at 120 ± 2ºC |
BS 3757 |
% |
≤ 15 |
Flammability |
| UK |
BS 476 Part 7 |
|
Class 1 Y |
| USA |
UL 94 |
|
V 0 |
** 3 mm |
| |
|
