PVC Pipe / PVC Pressure Pipes |

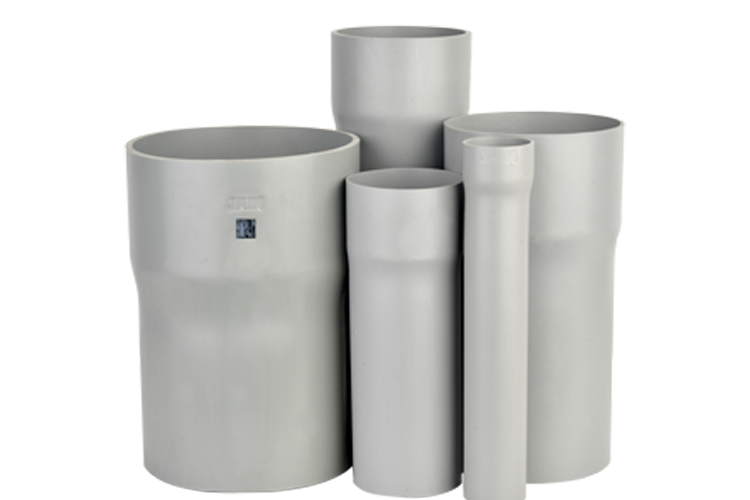

Quick Fix® PVC Pipes |
|
|
Features and Specifications: |
Features and Specifications : |
-
Manufactured from high quality PVC compound.
-
Excellent corrosion and chemical resistance to most acidic and alkaline solutions.
-
Light weight.
-
Easy to handle and transport.
-
Excellent flow characteristics.
-
Smooth inner wall minimizes frictional losses and scaling due to precipitation.
-
Available as per IS-4985, DIN-8062 and ISO-4422-2.
-
Also manufactured to BS-3505/3506, ASTM D1785-84 and ASTM D 2241 on demand.
-
Available in sizes from 20 mm (½”) to 560 mm (20”) as per above standards.
Commonly supplied in 6 m lengths with plain ends or socketed at one end for solvent cement weld (Any other pipe length can be supplied on request). |
Convenient push-fit joints. Saves manpower. Jointing can be done during any time of the day under any weather conditions. Faster installation, immediate pressure testing and commissioning possible. Joints accommodate expansion and contraction. Joints are resistant to soil movement due to earthquake effects. -
The elastomeric rings have properties matching to Pipe with long shelf life.
Available as per IS-4985, ISO-4422-2 and DIN-8062. -
Available in sizes & pressure classes shown in the table in Green colour.
|
Applications
|
-
Used for conveyance of water in drip/sprinkler irrigation systems, lift irrigation systems, surface irrigation systems, subsoil drainage system, potable water supply systems, rising main and distribution lines.
|
Dimensions as per ISO 4422-2 |
Dimensions as per IS 4985 |
| Nom. Outside Dia. mm |
Minimum Wall Thickness in mm |
| Pressure Rating in kg/cm² |
| 5 |
6 |
6.3 |
8 |
10 |
12.5 |
16 |
20 |
25 |
| 020 |
- |
- |
- |
- |
- |
- |
1.5 |
- |
2.3 |
| 025 |
- |
- |
- |
- |
- |
1.5 |
1.9 |
- |
2.8 |
| 032 |
- |
- |
- |
- |
1.6 |
1.9 |
2.4 |
- |
3.6 |
| 040 |
- |
- |
1.5 |
1.6 |
1.9 |
2.4 |
3.0 |
- |
4.5 |
| 050 |
- |
- |
1.6 |
2.0 |
2.4 |
3.0 |
3.7 |
- |
5.6 |
| 063 |
1.6 |
1.9 |
2.0 |
2.5 |
3.0 |
3.8 |
4.7 |
- |
7.1 |
| 075 |
1.9 |
2.2 |
2.3 |
2.9 |
3.6 |
4.5 |
5.6 |
- |
8.4 |
| 090 |
2.2 |
2.7 |
2.8 |
3.5 |
4.3 |
5.4 |
6.7 |
- |
10.1 |
| 110 |
- |
- |
2.7 |
3.4 |
4.2 |
5.3 |
6.6 |
8.1 |
10.0 |
| 125 |
- |
- |
3.1 |
3.9 |
4.8 |
6.0 |
7.4 |
9.2 |
11.4 |
| 140 |
- |
- |
3.5 |
4.3 |
5.4 |
6.7 |
8.3 |
10.3 |
12.7 |
| 160 |
- |
- |
4.0 |
4.9 |
6.2 |
7.7 |
9.5 |
11.8 |
14.7 |
| 180 |
- |
- |
4.4 |
5.5 |
6.9 |
8.6 |
10.7 |
13.3 |
16.4 |
| 200 |
- |
- |
4.9 |
6.2 |
7.7 |
9.6 |
11.9 |
14.7 |
18.2 |
| 225 |
- |
- |
5.5 |
6.9 |
8.6 |
10.8 |
13.4 |
16.6 |
- |
| 250 |
- |
- |
6.2 |
7.7 |
9.6 |
11.9 |
14.8 |
18.4 |
- |
| 280 |
- |
- |
6.9 |
8.6 |
10.7 |
13.4 |
16.6 |
20.6 |
- |
| 315 |
- |
- |
7.7 |
9.7 |
12.1 |
15.0 |
18.7 |
23.2 |
- |
| 355 |
- |
- |
8.7 |
10.9 |
13.6 |
16.9 |
21.1 |
26.1 |
- |
| 400 |
- |
- |
9.8 |
12.3 |
15.3 |
19.1 |
23.7 |
29.4 |
- |
| 450 |
- |
- |
11.0 |
13.8 |
17.2 |
21.5 |
26.7 |
33.1 |
- |
| 500 |
- |
- |
12.3 |
15.3 |
19.1 |
23.9 |
29.7 |
36.8 |
- |
| 560 |
- |
- |
13.7 |
17.2 |
21.4 |
26.7 |
- |
- |
- |
|
| Nom. Outside Dia. mm |
Minimum Wall Thickness in mm |
| Pressure Rating in kg/cm² |
| 2.5 |
4.0 |
6.0 |
8.0 |
10.0 |
12.5 |
| 020 |
- |
- |
- |
- |
1.1 |
1.4 |
| 025 |
- |
- |
- |
1.2 |
1.4 |
1.7 |
| 032 |
- |
- |
- |
1.5 |
1.8 |
2.2 |
| 040 |
- |
- |
1.4 |
1.8 |
2.2 |
2.8 |
| 050 |
- |
- |
1.7 |
2.3 |
2.8 |
3.4 |
| 063 |
- |
1.5 |
2.2 |
2.8 |
3.5 |
4.3 |
| 075 |
- |
1.8 |
2.6 |
3.4 |
4.2 |
5.1 |
| 090 |
1.3 |
2.1 |
3.1 |
4.0 |
5.0 |
6.1 |
| 110 |
1.6 |
2.5 |
3.7 |
4.9 |
6.1 |
7.5 |
| 125 |
1.8 |
2.9 |
4.3 |
5.6 |
6.9 |
8.5 |
| 140 |
2.0 |
3.2 |
4.8 |
6.3 |
7.7 |
9.5 |
| 160 |
2.3 |
3.7 |
5.4 |
7.2 |
8.8 |
10.9 |
| 180 |
2.6 |
4.2 |
6.1 |
8.0 |
9.9 |
12.2 |
| 200 |
2.9 |
4.6 |
6.8 |
8.9 |
11.0 |
13.6 |
| 225 |
3.3 |
5.2 |
7.6 |
10.0 |
12.4 |
15.3 |
| 250 |
3.6 |
5.7 |
8.5 |
11.2 |
13.8 |
17.0 |
| 280 |
4.1 |
6.4 |
9.5 |
12.5 |
15.4 |
19.0 |
| 315 |
4.6 |
7.2 |
10.7 |
14.0 |
17.3 |
21.4 |
| 355 |
5.1 |
8.1 |
12.0 |
15.8 |
19.6 |
24.1 |
| 400 |
5.8 |
9.1 |
13.5 |
17.8 |
22.0 |
27.2 |
| 450 |
6.5- |
10.3 |
15.2 |
20.0 |
24.8 |
30.5 |
| 500 |
7.2 |
11.4 |
16.9 |
22.3 |
27.5 |
33.9 |
| 560 |
8.1 |
12.8 |
18.9 |
24.9 |
30.8 |
38.0 |
|
| Note : Blue colour represents wall thickness of available sizes in Quick Fix™ PVC pipes. |
Ordering Specifications |
* Standard Colour
Example: PRPA0750061GR00600 - This code represents PVC Pressure Pipe of 75 mm nominal outside diameter
having 6.0 Kg/cm² pressure rating as per IS-4985 with Quick Fix™ Elastomeric Ring Joint and of 6m.
