433 PC


  • Flow Rates (lpm): 570 to 1180

  • Working Pressure (kg/cm²): 2.0 to 4.0

  • Wetted Diameter (m): 11.5 to 14.0


  • Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops
  • For efficient irrigation of field edges

Features & Benefits

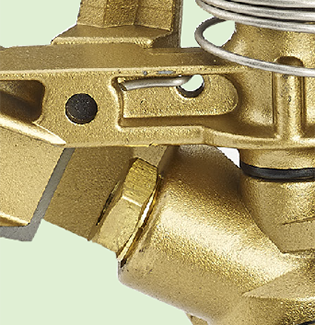

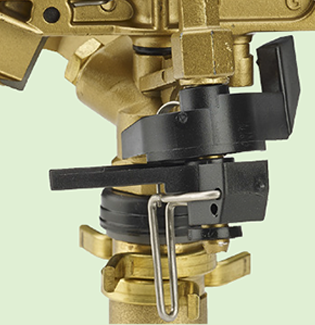

Finger-Tip Adjustment
User friendly, Stainless Steel fingertip adjustment to part circle mechanism

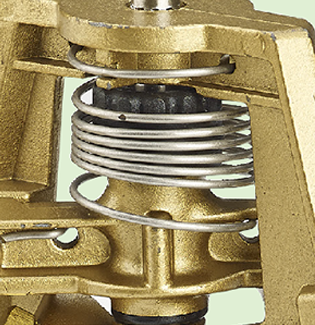

Special Design Retraction Spring
Stainless steel retraction spring maintains uniform rotation speed

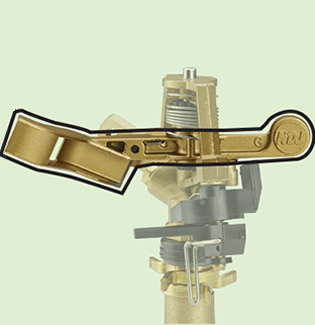

Innovative Swing Hammer
Well balanced swing hammer ensures smooth and uniform rotation
Hydrodynamically Designed replaceable Nozzles
Symbol of quality. It also helps to ensure upright positioning of the dripper for better clog resistance.

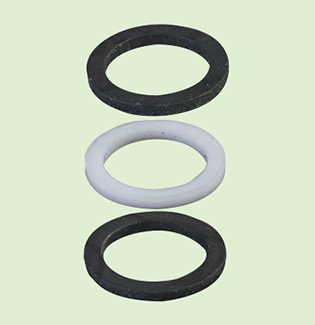

Equipped with Quality Washers.
Special washers used to give uniform & hassle free rotation along with leakage prevention

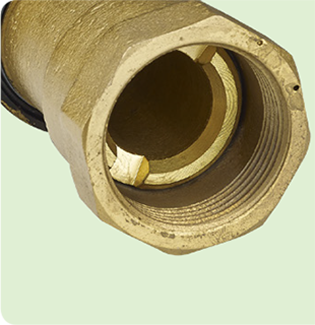

Threaded Inlet Connection
3/4" female threaded inlet connection for connectivity with system
