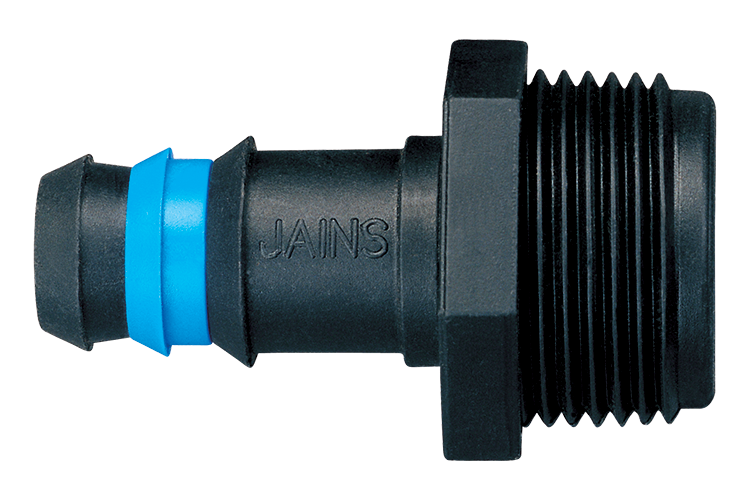

Dripline Threaded Adaptor

Technical Specifications

Tube x Thread mm * inch(BSP) Code Bag
Box
Qty. (nos.) Qty (nos.) Wt(kg) Code
12 OD x ½" TLTA1212 100 2500 15.4 B
16 OD x ½" TLTA1612 100 2000 13.7 B
20 OD x ½" TLTA2012 50 1200 9.4 B
12 OD x ¾" TLTA1234 100 2500 22.4 B
16 OD x ¾" TLTA1634 100 2000 13.5 B
20 OD x ¾" TLTA2034 50 1200 9.8 B

Applications

  • Threaded adaptor is used to connect dripline to respective sized threaded connection

Features & Benefits

  • Split ring for tube holding: Additional split ring provided for tube holding
  • Special Three barb fitting: Two steady barbs and one flexible barb provided to prevent snap out from tube.
  • Manufactured from tough engineering plastic
  • Non corrosive & resistant to chemicals
  • UV resistant fittings
