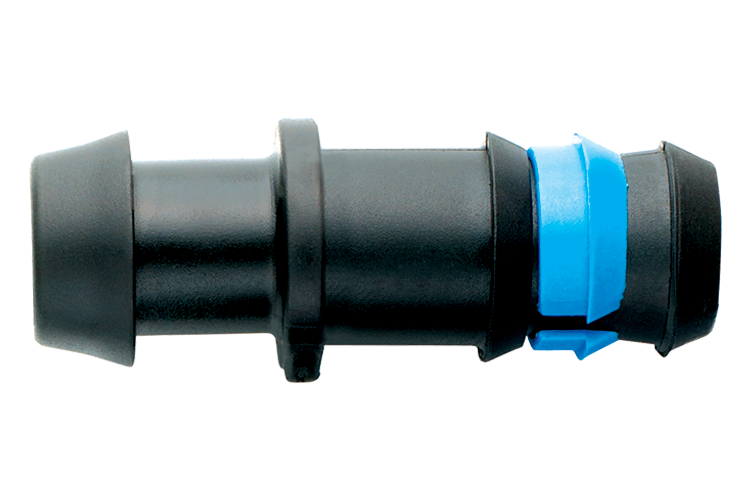

Dripline Take Off

Technical Specifications

Tube x Grommet( mm * mm) Code Bag
Box
Qty. (nos.) Qty (nos.) Wt(kg) Code
12 OD x 08 TLTO1208 100 6000 13.5 B
16 OD x 13 TLTO1613 100 4000 13.8 B
20 OD x 13 TLTO2013 100 2000 10.9 B

Applications

  • Takeoff is used to connect dripline / plain lateral to submain

Features & Benefits

  • Split ring for tube holding: Additional split ring provided for tube holding
  • Special Three barb fitting: Two steady barbs and one flexible barb provided to prevent snap out from tube.
  • Manufactured from tough engineering plastic
  • Non corrosive & resistant to chemicals
  • UV resistant fittings
