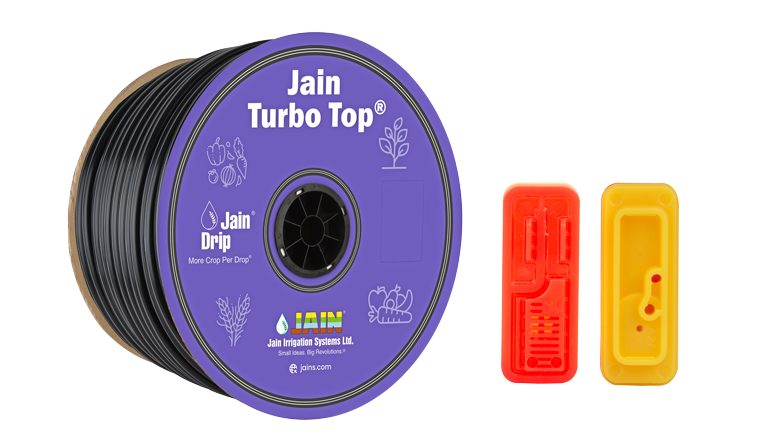

Jain Turbo Top® HD, PC & PCAS


  • Sizes (mm): 12, 16, 17, 18, 20, 22, 23, 25

  • Emitter Spacings (cm): 15, 20, 30, 40, 50, 60, 75, 90, 100

  • Nominal Discharges (lph): 1.1, 1.6, 2.0, 2.2, 3.8

  • Pressure Compensating Range: PC AND PCAS model - 0.4-4.0 kg/cm² (5.7-56 psi)


  • All purpose versatile product. Suitable for undulating and hilly terrain.
  • Recommended for Greenhouse application.
  • Open field application to maintain high field application efficiency.
  • PCAS is recommended for subsurface application to prevent soil suction.
  • Irrigation of large fields & long rows.
  • Low operating pressure/ Gravity feed irrigation system.

Features & Benefits

Integral, Flat, Pressure Compensating Dripline
Available with two options, - Basic Pressure Compensating (PC), Orange, - Pressure Compensating Anti-Siphon (PCAS),Blue

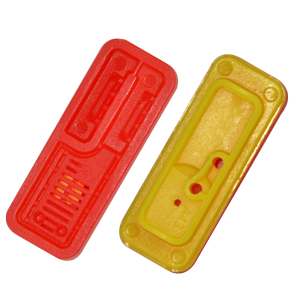

Innovative Cascade Labyrinth
Cascade labyrinth gives strong, self cleaning turbulence. Hydrodynamic dripper design ensures continuous flushing of sediments and small dirt particles.
Three Dimensional Inlet Filter
Multiple channel 3-D water inlet for operation under heavy dirt load.
Protection from Root Intrusion and Sand Suction
Deep weir outlet structure prevents root intrusion and sand suction.
Precision Pressure Compensation
Injection moulded silicone diaphragm ensures precision in pressure compensation helps to maintain high discharge uniformity.
Dynamic Self Cleaning Mechanism
Dynamic movement of diaphragm flushes of debris.
Raised Water Inlet
Raised water inlet takes the water from high velocity, dirt free region of the tubing.
Energy Efficient Dripline
Streamlined and shallow depth of emitter causes low pressure loss as compared to other similar products in the industry.
Manufactured with Most Modern, State-Of-the-Art Equipment.
It’s computerised continuous online quality control monitors emitter spacing and precision in outlet drilling. Thus ensures reliable quality and consistent performance.
Flexibility in color selection
Black - for agriculture,
Brown - for landscape application,
White - for greenhouse application,
Purple - for reclaimed water application.
