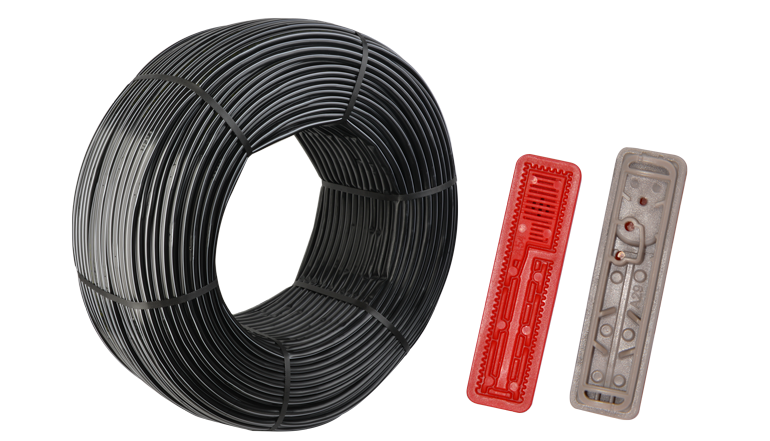

Jain Turbo Cascade PC, PCNL & PCAS


  • Sizes (mm): 16, 17, 18, 20, 22, 23, 25

  • Emitter Spacings (cm): 15, 20, 30, 40, 50, 60, 75, 90, 100, 120, 150

  • Nominal Discharges (lph): 1.1, 1.6, 2.0, 2.2, 3.8, 8.0

  • Pressure Compensating Range:
    PC AND PCAS model-0.5-4.0 kg/cm² (7.11-56.88 psi)
    PCNL model-1.0-4.0 kg/cm² (14.22-56.88psi)

  • Opening and Closing Pressure for PCNL Model:
    Opening pressure - 1.0 kg/cm² (14.22 psi)
    Closing pressure - 0.25 kg/cm² (2.56 psi)


  • All purpose versatile product. Suitable for undulating areas.
  • Open field application to maintain high field application efficiency.
  • PCNL option allows all the drippers to open at a time. Hence it is specially recommended for pulse irrigation for greenhouse/nurseries especially for soilless substrate application.
  • PCNL option reduces filling time, saves water and electricity needed to fill up large pipe volume.
  • PCAS is recommended for subsurface application to prevent soil suction.
  • Large fields with long rows.

Features & Benefits

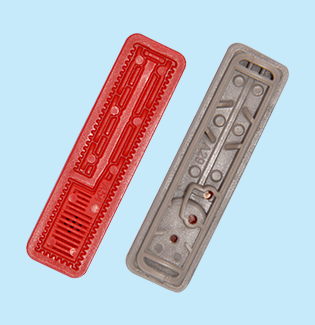

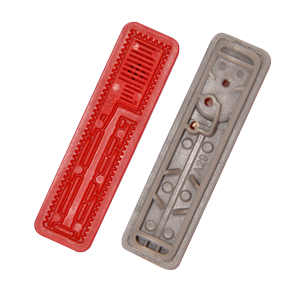

Integral, Flat, Pressure Compensating Dripline
Available in three options, Basic Pressure Compensating, Orange, Pressure Compensating Anti-Siphon, Blue, Pressure Compensating Non-Leakage, Red

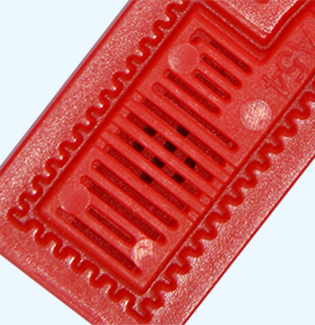

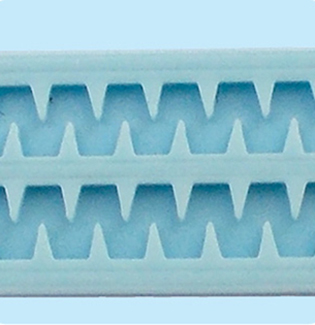

Innovative Cascade Labyrinth
Cascade labyrinth gives strong, self cleaning turbulence. Hydrodynamic dripper design ensures continuous flushing of sediments.
Innovative Fine Inlet Filter Innovative fine inlet structure to improve clog resistance.

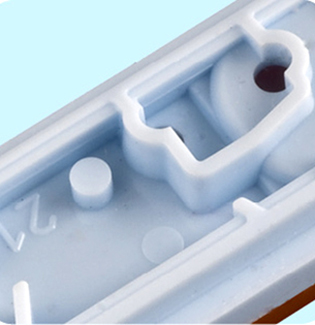

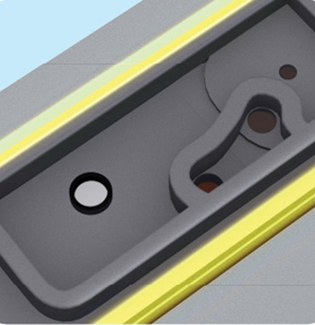

Protection from Root Intrusion and Sand Suction
Weir outlet structure separates regulating outlet from tubing outlet which prevents root intrusion and sand suction.

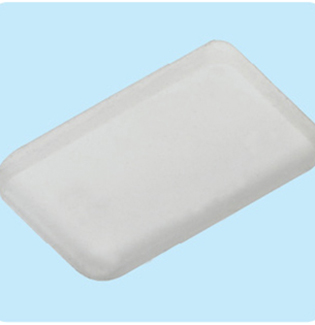

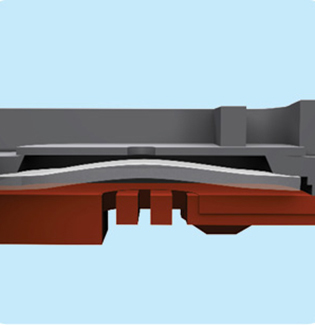

Precision Pressure Compensation
Injection moulded silicone diaphragm ensures precision in pressure compensation helps to maintain high discharge uniformity.
Dynamic Self Cleaning Mechanism
Dynamic movement of diaphragm flushes of debris.
Manufactured with Most Modern, State-Of-the-Art Equipment.
It’s computerised continuous online quality control monitors emitter spacing and precision in outlet drilling. Thus ensures reliable quality and consistent performance.

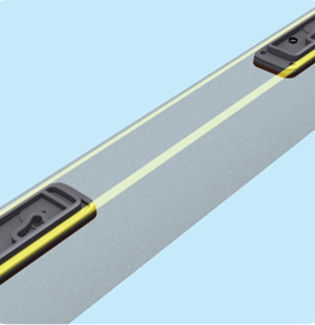

Marked with Two Parallel White Stripes ‘Twin- Line®
Our copyright marking of two parallel yellow line ‘Twin- Line®’ assures a best quality product.

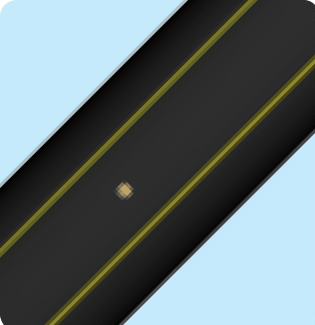

Laser Drilled Outlet Holes
Precision laser drilled outlet gives uniform and clear openings.

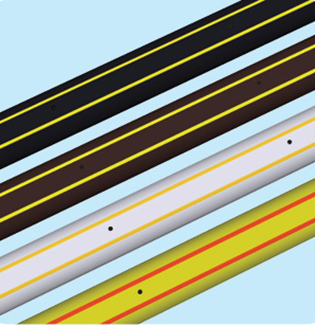

Flexibility in color selection
Black - for agriculture,
Brown - for landscape application,
White - for greenhouse application,
Purple - for reclaimed water application.
