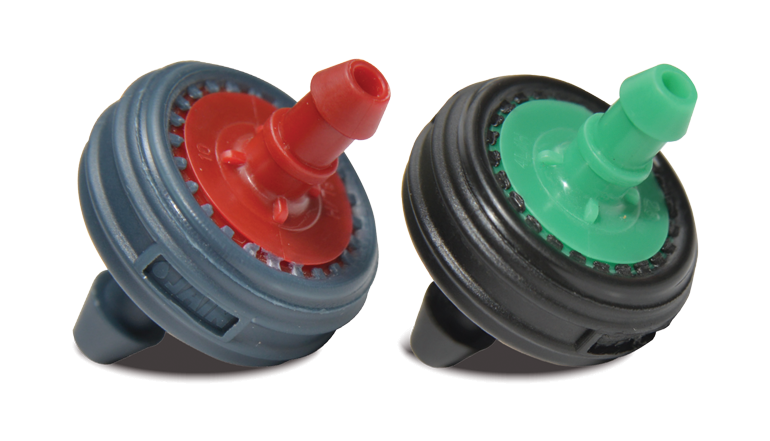

Turbo PC
Turbo PC
Specification
-
Nominal Discharges (lph) 2.0, 4.0, 8.0, 24.0
-
Working Pressure (kg/cm²) 0.5 to 4
Applications
- For orchards, vineyards, greenhouses, nurseries and landscape.
- For pulse irrigation and irrigation in soilless conditions
- Prevents surplus drainage in low places (PCNL model)
- For areas with harsh topographical conditions.
- Subsurface installation protects dripper from animal damage
Features & Benefits
- Factory Sealed, Pressure Compensating Emitter Two models available, PC (Black Base) - Pressure Compensating PCNL (Grey Base)- Pressure Compensating Non Leakage
- Wide Pressure Compensating Range Uniform discharge for pressure regulation range 0.5 - 4 kg/cm2
- Clog Resistant Turbulent flow in the labyrinth makes is clog resistant Dripper
- Self Cleaning Mechanism Dynamic movement of silicone diaphragm retracts to push away particles which are blocking the emitter.
- Barbed Inlet with Narrow Inlet Filter Precision inlet filters prevents entrance of most of the impurities.
- Ultrasonic Welding Technology Emitter is prevented by a parallel formation and welding of the cover, around the edge of the body , making it impossible to leak regardless of the climatic or pressure conditions
- No Environmental and Chemical Effects : UV stabilised, does not have any environmental effects. Resistant to chemicals used in agriculture.
- Excellent CVm, (Manufacturer’s Coefficient of Variation): Manufacturing coefficient of variation, CVm ≤ 4% ensures high field emission uniformity.
- Color Coded Cap : Color coded cap facilitates easy identification of emitter flow rate.
