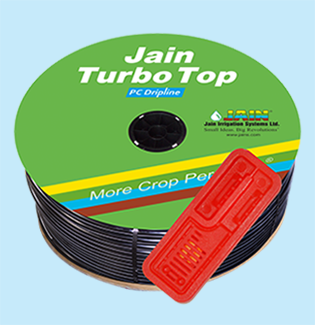

Jain Turbo Top® Thin Wall PC & PCAS


  • Sizes (mm): 12, 16, 17, 18, 19, 22, 25

  • Emitter Spacings (cm): 15, 20, 30, 40, 50, 60, 75, 90, 100

  • Nominal Discharges (lph): 1.1, 1.6, 2.0, 2.2


  • All purpose versatile product. Suitable for undulating and hilly terrain.
  • Recommended for Greenhouse applications.
  • Open field application to maintain high field application efficiency.
  • PCAS is recommended for subsurface application to prevent soil suction.
  • Irrigation of large fields & long rows.
  • Low operating pressure/ Gravity feed irrigation system.

Features & Benefits

Integral, Flat, Pressure Compensating Drip tape

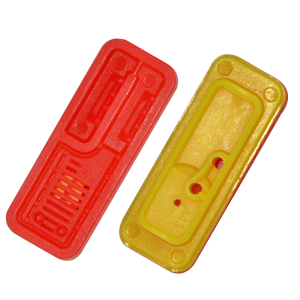

Available with two options, - Basic Pressure Compensating (PC), Orange, - Pressure Compensating Anti-Siphon (PCAS),Blue

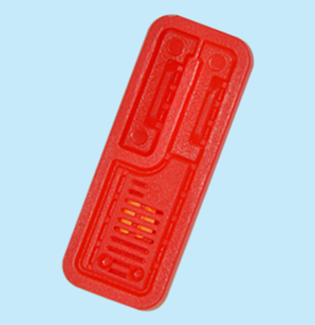

Innovative Cascade Labyrinth
Cascade labyrinth gives strong, self cleaning turbulence. Hydrodynamic dripper design ensures continuous flushing of sediments and small dirt particles.

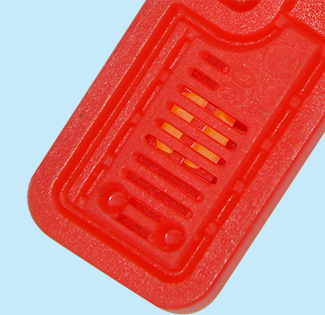

Three Dimensional Inlet Filter
Multiple channel 3-D water inlet for operation under heavy dirt load
Protection from Root Intrusion and Sand Suction
Deep weir outlet structure prevents root intrusion and sand suction.
Precision Pressure Compensation
Injection moulded silicone diaphragm ensures precision in pressure compensation helps to maintain nominal discharge uniformity.
Dynamic Self Cleaning Mechanism
Dynamic movement of diaphragm flushes of debris.
Raised Water Inlet
Raised water inlet takes the water from high velocity and dirt free region of the tubing.
Energy Efficient Dripline
Streamlined and shallow depth of emitter causes low pressure loss as compared to other similar products in the industry.

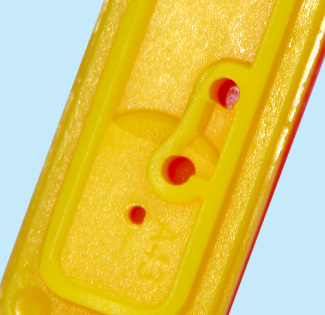

Laser Drilled Outlet Holes
Precision laser drilled outlet gives uniform and clear openings

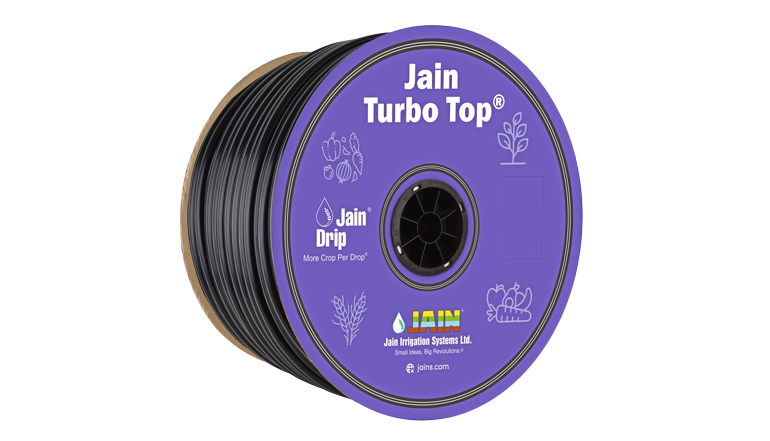

Freight Saver
Longer length of coil, higher volume per shipment, less space in warehouse, less handling costs.
