Jain SunPlast SWHS (FPC & ETC)

  • Standard capacities available: 100, 125, 200, 250, 300, 375 & 500 LPD.

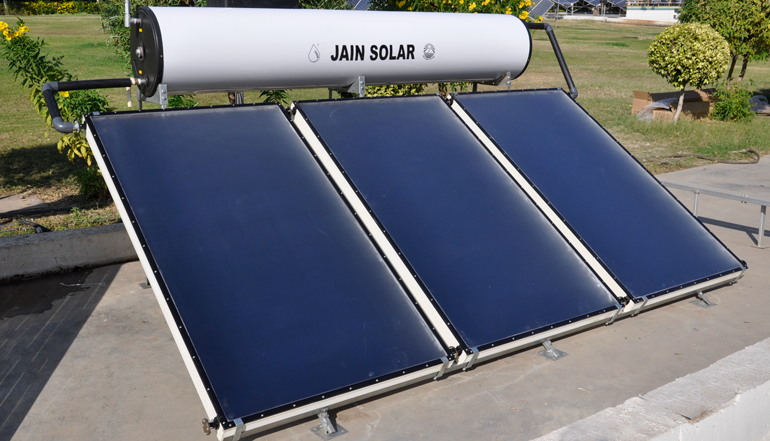

  • Collectors: Flat Plate Collector (FPC)

  • Collectors: Evacuated Tube Collector (ETC)

This is the heart of the solar system. In Flat plate collector (FPC), copper grid with aluminum full sheet absorber is laser welded to the copper risers. In Evacuated tubes Collector (ETC), evacuated glass tubes are made up of borosilicate glass coated with Al-N/AL coating using sputtering technique to achieve highest efficiency.


Applications

  • Bungalows
  • Apartments
  • Guest Houses
  • Lodges
  • Hotels
  • Hotels
  • Hospitals
  • Heath Clubs
  • wherever & whenever you need hot water

Features & Benefits

  • Saves energy & environment.
  • easy to install & maintain.
  • no fear of shock/ accidents.
  • expenses almost nil.
  • daily water heating.
  • Negligible maintenance.

Insulated Hot Water Storage Tank

  • Hot Water Tank is made of virgin high performance polymer with outer cladding of GI Pre coated, oven baked sheet, insulated with 50mm thick, high density Poly-Urethane Foam (PUF) Insulation. This ensures least overnight temperature drop.
  • Models

    • Jain SunPlast FPC: Polymer tank with open loop system for 100 300 litres water tank
    • Jain SunPlast ETC: Polymer tank with open loop system for 100 300 litres water tank
