Jain Irrigation Systems Limited (JISL), has an unmatched and enviable performance track record as a Total Solution Provider for various thermoplastics piping systems such as for Agriculture, Water, Gas, Telecom, Utility, Sewerage, Chemicals, Industrial Effluents, Mining, Slurry, Coal ash, SWR, Sub soil drainage, Ground water tapping, Lift irrigation, Micro irrigation & sprinkler irrigation, Hand pumps, House service Connections etc.

We are the only manufacturer of 1600 mm dia HDPE pipe and its fittings in India . We have with us more than 9000 associates worldwide and revenue of more than 60 billion rupees with manufacturing plants in 28 locations across the globe, having network of more than 3000 Distributors & Dealers worldwide.

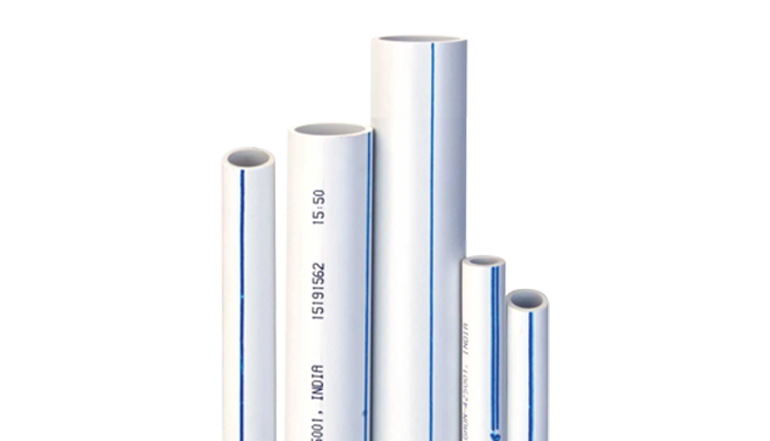

JISL from its noble range brings to you JAIN Plumbing UPVC ASTM Pips and Fittings systems for all your domestic and high pressure cold water plumbing requirments.

Jain Plumbing high quality UPVC ASTM Plumbing pipes and fittings are manufactured in line with major international standards and parameters. The range encompasses both Solvent Welded and Threaded piping pertaining to various applications from residential and commercial to industrial plumbing.

Features & Advantages

  • ASTM Cold Water
  • Easy to install
  • Durable for more than 50 years
  • Economical
  • Safe for drinking water
  • Corrosion Resistant
  • No Electrical tools required
  • Lower bacterial growth

Credibility

ASTM D 1785 for SCH 40, 80 and 120 Pipes

ASTM D 2467 for SCH 80 Fittings

ASTM Pipe Dimension Chart

Sr. No. Nominal Pipe
Size
Pipe Outside
Diameter (avg)
Pipe Minimum Wall Thickness (MM)
  (Inch) (MM) Sch 40 Sch 80 Sch 120
1 1½" 21.34 2.77 3.73 4.32
2 ¾"” 26.67 2.87 3.91 4.32
3 1" 33.4 3.38 4.55 5.08
4 1¼" 42.16 3.56 4.85 5.46
5 1½" 48.26 3.68 5.08 5.72
6 2" 60.32 3.91 5.54 6.35
7 2½" 73.02 5.16 7.01 7.62
8 3" 88.90 5.49 7.62 8.89
9 4" 114.30 6.02 8.56 11.10
10 5" 141.30 6.55 9.52 12.70
11 6" 168.28 7.11 10.97 14.27
12 8" 219.08 8.18 12.70 18.24
13 10" 273.05 9.27 15.06 21.41
14 12" 323.85 10.31 17.45 25.40

Water pressure rating for ASTM plain pipes at 230C( ASTM D 1785 )

Size Pressure Rating
Sch 40 Sch 80 Sch 120
Inch PSI Kg/cm2 PSI Kg/cm2 PSI Kg/cm2
1/2" 600 42.02 850 59.52 1010 70.73
3/4" 480 33.61 690 48.32 770 53.92
1" 450 31.51 630 44.12 720 50.42
11/4" 370 25.91 520 36.41 600 42.02
11/2" 330 23.11 470 32.91 540 37.82
2" 280 19.61 400 28.01 470 32.91
21/2" 300 21.01 420 29.41 470 32.91
3" 260 18.21 370 25.91 440 30.81
4" 220 15.41 320 22.41 430 30.11
5" 190 13.31 290 20.31 400 28.01
6" 180 12.61 280 19.61 370 25.91
8" 160 11.20 250 17.51 380 26.61
10" 140 9.80 230 16.11 370 25.91
12" 130 9.10 230 16.11 340 23.81

Installation Procedure

For fast and reliable joints of ASTM pipes and fittings use Permafix ASTM solvent cement and follow the below explained steps-

1) Jain UPVC pipe can be cut easily with plastic pipe cutter,

2) A slight bevel will ease the entry of the pipe into the socket.

3) Apply a Heavy, even coat of Perma – Fix solvent cement to the out side of the pipe end.

4) Apply a medium coat of Perma – Fix solvent cement to the fitting socket.



5) Immediately insert the pipe into the fitting’s socket, Aline the fitting in the proper orientation.



6) The set and cure time for Perma – Fix solvent cement depend’s on pipe size and temperature.
