Features and Specifications:
-
Manufactured from virgin LLDPE using advanced
extrusion technology.
-
Excellent characteristics of LLDPE provide
durable tubing with close dimensional tolerances.
-

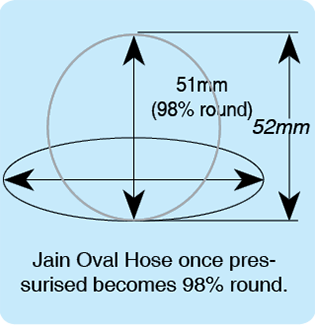

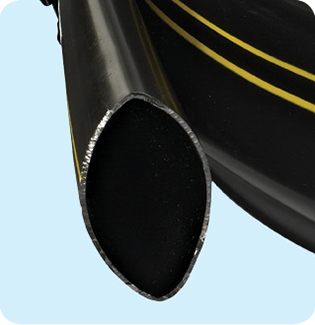

Jain Oval Hose once pressurized becomes 98%
round.
-

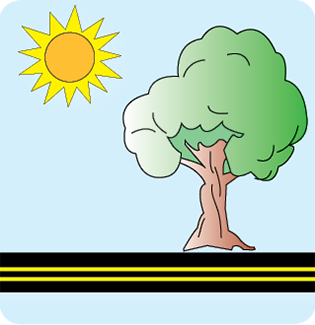

Suitable for surface as well as subsurface
installation.
-
UV stabilized.
-
No environmental effects.
-

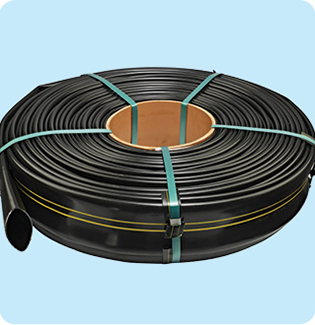

Oval shape reduces freight and storage cost.
-
Manufactured as per ASAE standard.
-
Each batch passes through following stringent
quality tests to ensure efficient and trouble free performance.
- Dimensional tolerances.
- Short term & long term hydraulic pressure.
- Heat reversion.
- Carbon black content.
- Environmental stress crack resistance (ESCR).
- Accelerated weathering.
- Tensile Strength and Elongation.
|
|
Applications:
|
Jain Oval Hose ASAE AS435:
| Code |
Nominal Diameter |
Inside Diameter |
Min. Wall Thickness |
Std. Coil Length |
Weight per Coil |
| mm |
inch |
mm |
inch |
mm |
inch |
m |
ft |
kg |
lbs |
|
2.9 kg/cm² (42 psi) Working Pressure |
| JOH010021 |
10 |
- |
9.90 |
0.39 |
0.533 |
0.021 |
1006 |
3300 |
16.44 |
36.16 |
| JOH013027 |
13 |
- |
12.70 |
0.50 |
0.686 |
0.027 |
915 |
3000 |
24.68 |
54.20 |
| JOH016034 |
16 |
0.50 |
16.00 |
0.63 |
0.864 |
0.034 |
500 |
1640 |
21.40 |
47.08 |
| JOH020043 |
20 |
0.75 |
20.57 |
0.81 |
1.092 |
0.043 |
366 |
1200 |
25.44 |
55.96 |
| JOH026054 |
26 |
1.00 |
26.41 |
1.04 |
1.372 |
0.054 |
201 |
660 |
22.51 |
49.52 |
| JOH035070 |
35 |
1.25 |
34.54 |
1.36 |
1.778 |
0.070 |
122 |
400 |
23.15 |
50.93 |
| JOH040084 |
40 |
1.50 |
40.38 |
1.59 |
2.134 |
0.084 |
107 |
350 |
28.52 |
62.74 |
| JOH052108 |
52 |
2.00 |
51.99 |
2.04 |
2.743 |
0.108 |
76 |
250 |
33.52 |
73.74 |
|
1.45 kg/cm² (21 psi) Working Pressure |
| JOH026026 |
26 |
1.00 |
26.41 |
1.04 |
0.660 |
0.026 |
506 |
1660 |
26.56 |
58.43 |
| JOH035034 |
35 |
1.25 |
34.54 |
1.37 |
0.864 |
0.034 |
244 |
800 |
21.93 |
48.24 |
| JOH040040 |
40 |
1.50 |
40.38 |
1.60 |
1.016 |
0.040 |
183 |
600 |
22.61 |
49.74 |
| JOH052051 |
52 |
2.00 |
51.99 |
2.05 |
1.295 |
0.051 |
137 |
450 |
27.77 |
61.10 |
| JOH077075 |
77 |
3.00 |
77.16 |
3.03 |
1.930 |
0.075 |
61 |
200 |
28.85 |
63.47 |
| JOH101100 |
101 |
4.00 |
101.37 |
3.99 |
2.540 |
0.100 |
40 |
131 |
32.16 |
70.75 |
1.13 kg/cm² (16 psi) Working Pressure |
| JOH151108 |
151 |
6.00 |
151.30 |
5.95 |
2.760 |
0.108 |
30 |
100 |
40.00 |
88.00 |
| Note : Inside Diameter based Hose. |
|
Ordering Specifications:
Example: JOH016034 - This code refers
to Jain Oval Hose of nominal diameter 16 mm having wall thickness
0.034”.
Note: - Please refer standard specification table while ordering.
- On request, Jain Oval Hose can be supplied in any other length than standard coil length
|
|
|
|
|
|
|
