Jain Turbo Excel ® Plus

Specification

  • Sizes (mm): 12, 16, 17, 18, 19, 20, 23, 25

  • Emitter Spacings (cm): 15, 20, 30, 40, 50, 60, 75, 90, 100, 120, 150

  • Nominal Discharges (lph): 0.8, 1.2, 1.6, 2.0, 4.0

Applications

  • Jain Turbo Excel®Plus is recommended for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, vegetables, spices, biofuel crops, floriculture, etc.
  • Recommended to use in greenhouses and nurseries.
  • Suitable for landscape, shrubs and turf irrigation.
  • Used for widely spaced horticultural plants like mango, citrus, guava, apple etc. in group spacings.
  • Suitable for multi–seasonal applications.
  • Suitable for surface as well as sub surface installations.

Features & Benefits

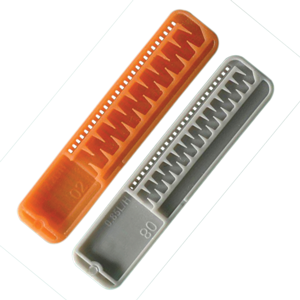

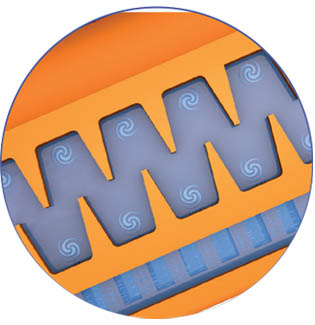

Innovative Cascade Labyrinth
Hydrodynamically designed Cascade teeth structure helps to create double flow regime viz. central curving flow and turbulent cyclone in the dripper.This helps in continuous flushing of particles.

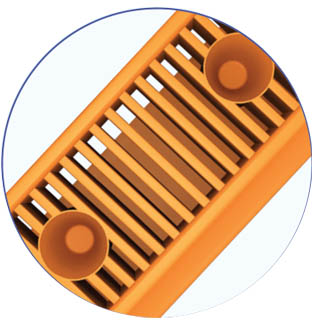

Three Dimensional Inlet Filter
Unique 3–D filtration surface (having length, width and depth) enable clog free operation even under high clog risk conditions.

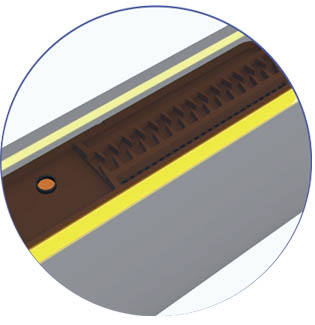

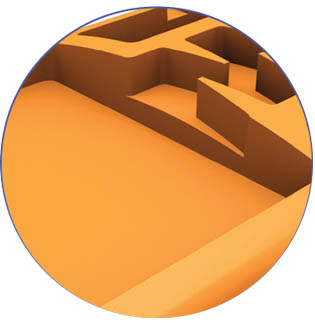

Prevention of Sand Suction
Weir structure to prevent entry of sand particles in flow path.
Laser Drilled Outlet Hole
Precision laser drilled outlet gives uniform and clear opening.
Manufactured With Most Modern, State–Of–The–Art Equipment
It’s computerised continuous online quality control monitors emitter spacing and precision in outlet drilling. Thus ensures reliable quality and consistent performance.

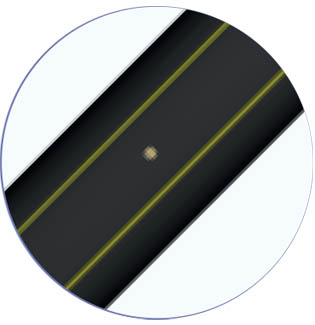

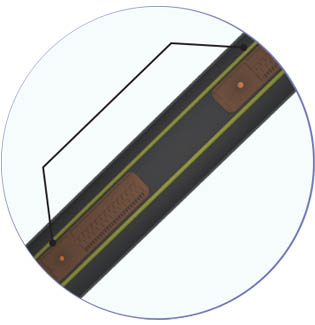

Marked With Two Parallel Yellow Stripes ‘Twin–Line®’
Symbol of quality. It also helps to ensure upright positioning of the dripper to provide better clog resistance.

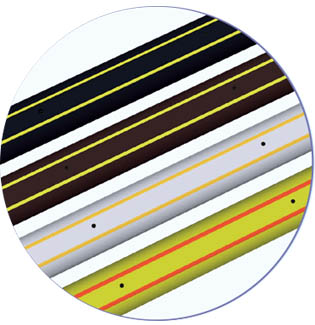

Flexibility in Color Selection Black–for agriculture
Brown–for landscape application,
White–for greenhouse application,
Purple–for reclaimed water application.

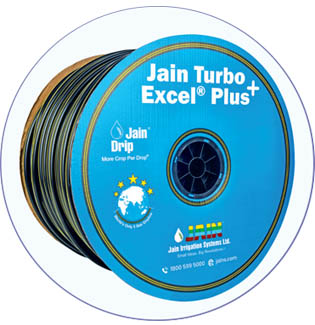

Available in Spool Packaging Options with Hologram
Freight saver option on carton spool Jain Turbo Excel® Plus with Hollogram
