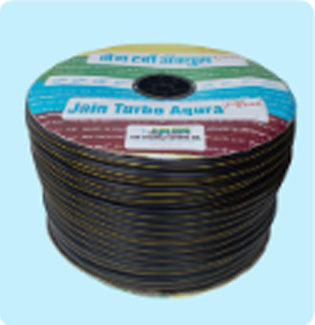

J-Turbo Aqura™
|
|
Features and Specifications

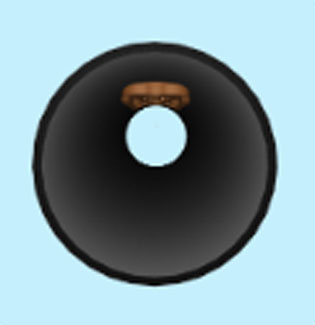

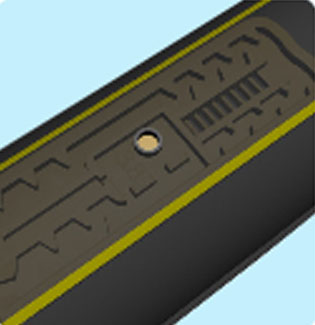

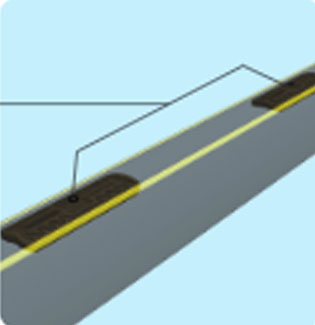

- An extruded, seamless tube with drippers permanently fixed inside.
- Manufactured from special grade virgin plastic using state-of-the art technology that guarantees the best results.
- Manufactured with most modern, state-of-the-art equipment. It’s computerised continuous online quality control ensures reliable quality and consistent performance.

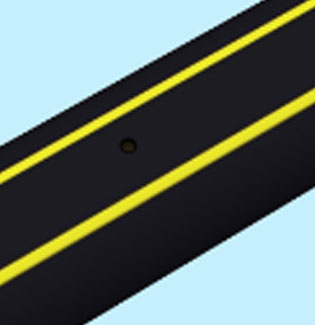

- Marked with two parallel yellow stripes ‘Twin- Line®’. Symbol of quality. It also helps to ensure upright positioning of the dripper.

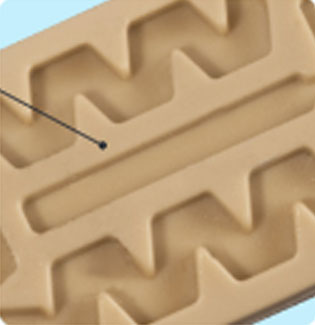

- Large cross-sectional, hydraulically designed turbulent flow-path that makes it a clog resistant emitting pipe.

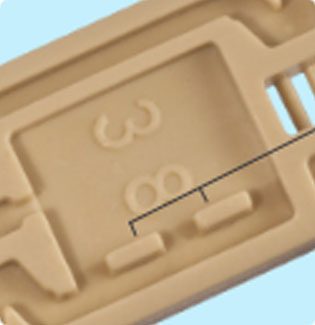

- Inbuilt filters prevents physical impurities entering in to the dripper.
- Excellent CVm, manufacturer’s coefficient of variation, ensures best field emission uniformity.
- Online stringent quality checks at every stage.
- Precision laser drilled outlet holes.
- Best environmental stress crack resistant.
- Easy to roll back & re-lay.
- Minimum 100 micron filtration recommended.
- Available in four discharge rates of 0.8, 1.3, 2.4 and 4.0 lph at 1 kg/cm² pressure as per metric standard. 0.21, 0.34, 0.62 and 1.06 gph at 14 psi as per US standard.
- Available in standard dripper spacing 15, 20, 30, 40, 50, 60, 75 and 90 cm. Other spacing and group spacings are available on demand.
- J-Turbo Aqura® is available in 12, 16, 17, 19, 20 and 23 mm nominal diameter as per metric standard. Also available in 5/8”, 7/8” and 1-3/8” nominal diameter as per US standard.
- On demand, available with rodent deterrent feature.
- Specially designed split ring fittings are available. Please refer to ‘Poly Fitting & Accessories’ pages.
 |
Applications
- J-Turbo Aqura® is recommended for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, vegetables, spices and floriculture, etc.
- Recommended to use in greenhouses and nurseries.
- Used for widely spaced horticultural plants like mango, citrus, guava, apple etc. in group spacings.
- Suitable for surface as well as sub surface installations.
|
Dimensions of J-Turbo Aqura® - Metric
Nominal Diameter
mm |
Inside Diameter
mm |
Minimum Wall Thickness (mm) |
Standard Coil Length in meter |
| Class-1 |
Class-2 |
Class-3 |
| 12 |
10.5 |
0.4 |
0.6 |
0.8 |
100, 250, 500 |
| 16 |
14.2 |
0.5 |
0.7 |
1.0 |
100, 250, 400 |
| 16 |
13.9 |
– |
0.9 |
1.0 |
100, 250, 400 |
| 17 |
15.3 |
– |
– |
0.9 |
100, 250, 400 |
| 18 |
15.7 |
– |
– |
0.9 |
100, 250, 400 |
| ** 19 |
18.9 |
– |
0.8 |
– |
100, 250 |
| 20 |
18.0 |
0.7 |
0.9 |
– |
100, 250 |
| 23 |
20.8 |
– |
0.9 |
– |
100 |
** As per Australian standard AS 2698 |
* Rodent Deterrent tubing is manufactured using a special additive, by virtue of which the properties of the tubing is enhanced in such a way that once the rodent bites the tube it gets an extremely bitter taste. This effect deters the rodent from gnawing the tubing again.

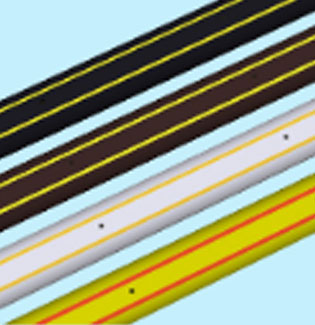

Rodent deterrent tubing is available in two parallel red stripes – “Twin Line®”. |
Dimensions of J-Turbo Aqura® - US
Nominal Diameter
Inch |
Inside Diameter
Inch |
Minimum Wall Thickness (mil) |
Standard Coil Length
in feet |
| Class-1 |
Class-2 |
Class-3 |
| 5/8 |
5/8 |
28 |
36 |
40 |
328, 820, 1640 |
| 7/8 |
7/8 |
28 |
36 |
40 |
328, 820 |
| 1-3/8 |
1-3/8 |
36 |
40 |
– |
328, 820 |
|
Performance Graph - J-Turbo Aqura
|
|
Technical Specifications for Emitter - Metric
Reference
Code |
Emitter
Discharge
lph |
Emitter
exponent |
Flow
Coefficient |
Coeff. of
mfgr.
Variation, |
Flow Path
Dimensions,
mm |
Inlet Filter Area
mm² |
| x |
k |
CVm |
Length |
Width |
Depth |
| DAIXX08 |
0.8 |
0.5 |
0.8 |
4 |
58 |
0.5 |
0.6 |
10.7 |
| DAIXX13 |
1.3 |
0.45 |
1.3 |
4.5 |
58 |
0.7 |
0.6 |
10.7 |
| DAIXX24 |
2.4 |
0.49 |
2.4 |
3.5 |
58 |
0.8 |
0.8 |
5.4 |
| DAIXX40 |
4.0 |
0.46 |
4 |
2 |
58 |
1 |
0.9 |
5.4 |
Flow equation q = kHX, q = discharge, lph, H = Pressure head, kg/cm², x = Emitter exponent |
Technical Specifications for Emitter - US
Reference
Code |
Emitter
Discharge
gph |
Emitter
exponent |
Flow
Coefficient |
Coeff. of
mfgr.
Variation, |
Flow Path
Dimensions,
inch |
Inlet Filter Area
sq. inch |
| x |
k |
CVm |
Length |
Width |
Depth |
| EAIXX08 |
0.22 |
0.5 |
0.054 |
4 |
2.3 |
0.020 |
0.024 |
0.017 |
| EAIXX13 |
0.34 |
0.45 |
0.103 |
4.5 |
2.3 |
0.028 |
0.024 |
0.017 |
| EAIXX24 |
0.62 |
0.49 |
0.168 |
3.5 |
2.3 |
0.031 |
0.031 |
0.008 |
| EAIXX40 |
1.06 |
0.46 |
0.318 |
2 |
2.3 |
0.039 |
0.035 |
0.008 |
Flow equation q = kHX, q = discharge, gph, H = Pressure head, psi, x = Emitter exponent |
|
Ordering Specifications - J-Turbo Aqura
|
|

|
|
