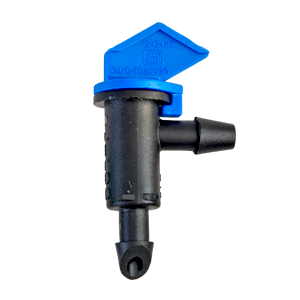

J-Loc™ Emitter

Features and Specifications:

  • Made of virgin plastic for stable performance.

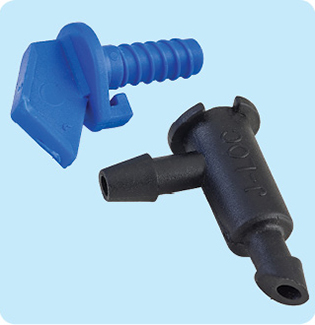

  • Take apart construction for easy cleaning.

  • Latching arrangement prevents insert snap-off during pressure fluctuations.

  • Manufacturing coefficient of variation, CVm ≤ 5%.

  • Unique design facilitates horizontal or vertical installation of the emitter.

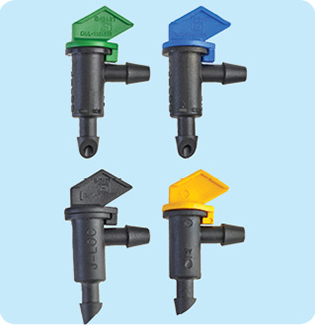

  • Coloured insert facilitates easy identification of flow rate.

  • UV stabilised.

  • No environmental effects.

  • Required punch diameter 2.9mm.

  • Minimum filtration requirement - 100 micron.

Applications:

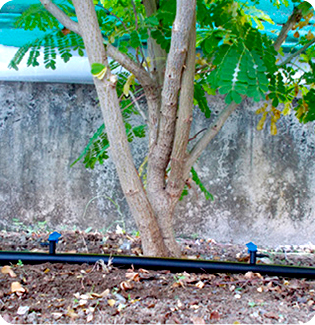

  • Suitable for vegetables, closely spaced row crops, glass/green houses & nurseries.

Performance Graph:

Ordering Specifications:

Example: DJL04 - This code represents J-Loc® Emitter having 4 lph discharge.

Technical Specification:

Code *Discharge Colour of
cap & insert
lph gph
DJL02 2.0 0.53 Yellow
DJL04 4.0 1.06 Black
DJL08 8.0 2.12 Blue
DJL15 15.0 3.97 Green

* At operating pressure of 1kg/cm² (14.22 psi)
