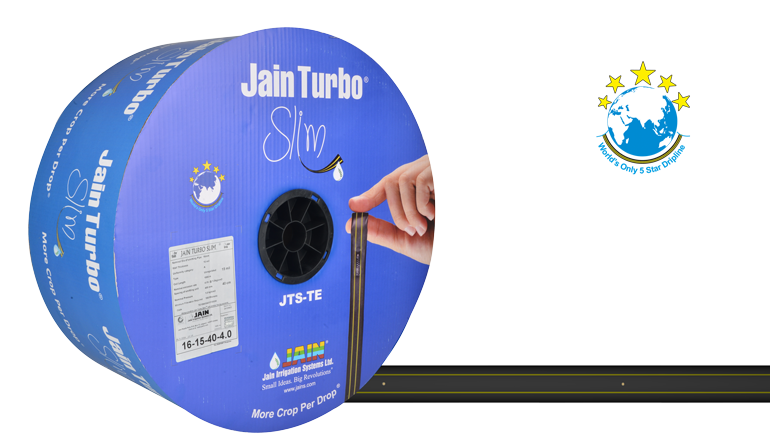

Jain Turbo Slim®
|
Features and Specifications
- Seamless drip tape with drippers permanently fixed inside. Seamless construction improves ability to withstand pressure fluctuations.
- Marked with two parallel yellow stripes ‘Twin- Line®’. Symbol of quality. It also helps to ensure upright positioning of the dripper.
- Manufactured from special grade, virgin polymer ensuring close dimensional tolerance and higher strength even at lower wall thickness.
- Manufactured with the most modern, state-of-the-art equipment. It’s computerized continuous online quality control ensures reliable quality and consistent performance.

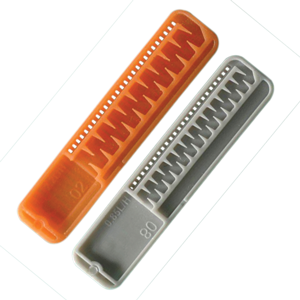

- Hydraulically designed turbulent flow path emitter with wide cross sectional area and precision inlet filter that makes it a truly clog resistant drip tape.
- Precision laser drilled outlet holes.
- Extremely low manufacturing coefficient of variation, CVm ensures high field emission uniformity.
- Available in 12, 16, 17, 19 and 25 mm nominal diameter as per metric standard. 5/8”, 7/8”, 9/8” and 1-3/8” nominal diameter as per US standard.
- Available in four discharge rates of 0.6, 1.1, 2.0 and 3.5 lph at nominal operating pressure of 0.7 kg/cm² as per metric standard. 0.17, 0.29, 0.52 and 0.92 gph at nominal operating pressure of 10 psi as per US standard.
- Available in wall thickness ranging from 6mil to 25mil (0.15mm to 0.63mm).
- Available in standard dripper spacing of 15, 20, 30, 40, 50, 60, 75, 90 and 100 cm. Any other spacing and group spacings are available on demand.
- Specially designed Tape Lock™ fittings are available. Please refer to ‘Poly Fittings & Accessories’ page.
- Minimum 100 micron filtration recommended. However required filtration type and precision depends upon quality of source water.
Applications
- Recommended for closely spaced seasonal row crops like sugarcane, cotton, chilly, potato, ground nut, onion, vegetables, oil seeds, banana, strawberry, floriculture, etc.
- Suitable for surface and subsurface applications.
|
Technical Specifications for Emitter - Metric
Reference
Code |
Emitter Discharge |
Emitter
exponent |
Flow
Coefficient |
Coeff. of
mfgr.
Variation |
Flow Path
Dimensions,
mm |
Inlet Filter Area |
lph at
0.7 kg/cm² |
lph at
1.0 kg/cm² |
x |
k |
CVm |
Length |
Width |
Depth |
mm² |
| DSXXX06 |
0.6 |
0.8 |
0.5 |
0.8 |
4 |
58 |
0.5 |
0.6 |
10.7 |
| DSXXX11 |
1.1 |
1.3 |
0.45 |
1.3 |
4.5 |
58 |
0.7 |
0.6 |
10.7 |
| DSXXX20 |
2.0 |
2.4 |
0.49 |
2.4 |
3.5 |
58 |
0.8 |
0.8 |
5.4 |
| DSXXX35 |
3.5 |
4 |
0.46 |
4 |
2 |
58 |
1 |
0.9 |
5.4 |
Flow equation q = kHX, q = discharge, lph, H = Pressure head, kg/cm², x = Emitter exponent |
Technical Specifications for Emitter - US
Reference
Code |
Emitter Discharge |
Emitter
exponent |
Flow
Coefficient |
Coeff. of
mfgr.
Variation |
Flow Path
Dimensions,
mm |
Inlet Filter Area |
gph at
10 psi |
gph at
14.22 psi |
x |
k |
CVm |
Length |
Width |
Depth |
mm² |
| DSXXX06 |
0.17 |
0.21 |
0.5 |
0.054 |
4 |
2.3 |
0.020 |
0.024 |
0.017 |
| DSXXX11 |
0.29 |
0.34 |
0.45 |
0.103 |
4.5 |
2.3 |
0.028 |
0.024 |
0.017 |
| DSXXX20 |
0.52 |
0.62 |
0.49 |
0.168 |
3.5 |
2.3 |
0.031 |
0.024 |
0.008 |
| DSXXX35 |
0.92 |
1.06 |
0.46 |
0.318 |
2 |
2.3 |
0.039 |
0.024 |
0.008 |
Flow equation q = kHX, q = discharge, gph, H = Pressure head, psi, x = Emitter exponent |
|
Technical Specifications for Tubing - Metric
Nominal
Diameter |
Wall
Thickness |
Inside
Diameter |
Outside
Diameter |
Max.
Operating
Pressure |
Max.Flushing
Pressure |
| mm |
mil |
mm |
mm |
mm |
kg/cm² |
kg/cm² |
| Jain Turbo Slim® 12 mm Nominal Diameter |
| 12 |
6 |
0.15 |
11.8 |
12.1 |
1.1 |
1.7 |
| 12 |
8 |
0.20 |
11.8 |
12.2 |
1.5 |
2.3 |
| 12 |
10 |
0.25 |
11.8 |
12.3 |
1.8 |
2.7 |
| 12 |
12 |
0.30 |
11.8 |
12.4 |
2.2 |
3.3 |
| 12 |
15 |
0.38 |
11.8 |
12.6 |
2.7 |
4.1 |
| 12 |
18 |
0.45 |
11.8 |
12.7 |
3.3 |
5.0 |
| 12 |
20 |
0.50 |
11.8 |
12.8 |
3.6 |
5.4 |
| 12 |
25 |
0.63 |
11.8 |
13.1 |
4.5 |
6.8 |
| Jain Turbo Slim® 16 mm Nominal Diameter |
| 16 |
6 |
0.15 |
15.9 |
16.2 |
0.8 |
1.2 |
| 16 |
8 |
0.20 |
15.9 |
16.3 |
1.1 |
1.7 |
| 16 |
10 |
0.25 |
15.9 |
16.4 |
1.4 |
2.1 |
| 16 |
12 |
0.30 |
15.9 |
16.5 |
1.6 |
2.4 |
| 16 |
15 |
0.38 |
15.9 |
16.7 |
2.0 |
3.0 |
| 16 |
18 |
0.45 |
15.9 |
16.8 |
2.4 |
3.6 |
| 16 |
20 |
0.50 |
15.9 |
16.9 |
2.7 |
4.1 |
| 16 |
25 |
0.63 |
15.9 |
17.2 |
3.4 |
5.1 |
| Jain Turbo Slim® 17 mm Nominal Diameter |
| 17 |
6 |
0.15 |
16.1 |
16.4 |
0.8 |
1.2 |
| 17 |
8 |
0.20 |
16.1 |
16.5 |
1.1 |
1.7 |
| 17 |
10 |
0.25 |
16.1 |
16.6 |
1.4 |
2.1 |
| 17 |
12 |
0.30 |
16.1 |
16.7 |
1.6 |
2.4 |
| 17 |
15 |
0.38 |
16.1 |
16.9 |
2.0 |
3.0 |
| 17 |
18 |
0.45 |
16.1 |
17.0 |
2.4 |
3.6 |
| 17 |
20 |
0.50 |
16.1 |
17.1 |
2.7 |
4.1 |
| 17 |
25 |
0.63 |
16.1 |
17.4 |
3.4 |
5.1 |
| Jain Turbo Slim® 19 mm Nominal Diameter |
| 19 |
6 |
0.15 |
19.0 |
19.3 |
0.7 |
1.1 |
| 19 |
8 |
0.20 |
19.0 |
19.4 |
0.9 |
1.4 |
| 19 |
10 |
0.25 |
19.0 |
19.5 |
1.1 |
1.7 |
| 19 |
12 |
0.30 |
19.0 |
19.6 |
1.4 |
2.1 |
| 19 |
15 |
0.38 |
19.0 |
19.8 |
1.7 |
2.6 |
| 19 |
18 |
0.45 |
19.0 |
19.9 |
2.0 |
3.0 |
| 19 |
20 |
0.50 |
19.0 |
20.0 |
2.3 |
3.5 |
| 19 |
25 |
0.63 |
19.0 |
20.3 |
2.8 |
4.2 |
| Jain Turbo Slim® 25 mm Nominal Diameter |
| 25 |
6 |
0.15 |
25.0 |
25.3 |
0.5 |
0.8 |
| 25 |
8 |
0.20 |
25.0 |
25.4 |
0.7 |
1.1 |
| 25 |
10 |
0.25 |
25.0 |
25.5 |
0.9 |
1.4 |
| 25 |
12 |
0.30 |
25.0 |
25.6 |
1.1 |
1.7 |
| 25 |
15 |
0.38 |
25.0 |
25.8 |
1.3 |
2.0 |
| 25 |
18 |
0.45 |
25.0 |
25.9 |
1.6 |
2.4 |
| 25 |
20 |
0.50 |
25.0 |
26.0 |
1.8 |
2.7 |
| 25 |
25 |
0.63 |
25.0 |
26.3 |
2.2 |
3.3 |
| Note : 1 mil = 1/1000th part of an inch = 0.0254 mm. |
|
Technical Specifications for Tubing - US
Nominal
Diameter |
Wall
Thickness |
Inside
Diameter |
Outside
Diameter |
Max.
Operating
Pressure |
Max.Flushing
Pressure |
| inch |
mil |
mm |
inch |
inch |
psi |
psi |
| Jain Turbo Slim® 5/8" Nominal Diameter |
| 5/8 |
6 |
0.15 |
0.625 |
0.637 |
11 |
17 |
| 5/8 |
8 |
0.20 |
0.625 |
0.641 |
15 |
23 |
| 5/8 |
10 |
0.25 |
0.625 |
0.645 |
20 |
30 |
| 5/8 |
12 |
0.30 |
0.625 |
0.649 |
22 |
34 |
| 5/8 |
15 |
0.38 |
0.625 |
0.655 |
28 |
43 |
| 5/8 |
18 |
0.45 |
0.625 |
0.661 |
34 |
51 |
| 5/8 |
20 |
0.50 |
0.625 |
0.665 |
38 |
58 |
| 5/8 |
25 |
0.63 |
0.625 |
0.675 |
48 |
73 |
| Jain Turbo Slim® 7/8 Nominal Diameter |
| 7/8 |
6 |
0.15 |
0.875 |
0.887 |
8 |
13 |
| 7/8 |
8 |
0.20 |
0.875 |
0.891 |
11 |
17 |
| 7/8 |
10 |
0.25 |
0.875 |
0.895 |
14 |
21 |
| 7/8 |
12 |
0.30 |
0.875 |
0.899 |
17 |
26 |
| 7/8 |
15 |
0.38 |
0.875 |
0.905 |
21 |
32 |
| 7/8 |
18 |
0.45 |
0.875 |
0.911 |
25 |
38 |
| 7/8 |
20 |
0.50 |
0.875 |
0.915 |
28 |
43 |
| 7/8 |
25 |
0.63 |
0.875 |
0.925 |
34 |
51 |
| Jain Turbo Slim® 9/8 Nominal Diameter |
| 9/8 |
6 |
0.15 |
1.125 |
1.425 |
7 |
10 |
| 9/8 |
8 |
0.20 |
1.125 |
1.525 |
9 |
12 |
| 9/8 |
10 |
0.25 |
1.125 |
1.625 |
11 |
15 |
| 9/8 |
12 |
0.30 |
1.125 |
1.725 |
13 |
20 |
| 9/8 |
15 |
0.38 |
1.125 |
1.9 |
16 |
24 |
| 9/8 |
18 |
0.45 |
1.125 |
2.0 |
20 |
29 |
| 9/8 |
20 |
0.50 |
1.125 |
2.1 |
22 |
33 |
| 9/8 |
25 |
0.63 |
1.125 |
2.4 |
27 |
41 |
| Jain Turbo Slim® 1-3/8 Nominal Diameter |
| 1-3/8 |
6 |
0.15 |
1.375 |
1.675 |
5 |
9 |
| 1-3/8 |
8 |
0.20 |
1.375 |
1.775 |
7 |
11 |
| 1-3/8 |
10 |
0.25 |
1.375 |
1.875 |
8 |
13 |
| 1-3/8 |
12 |
0.30 |
1.375 |
1.975 |
10 |
15 |
| 1-3/8 |
15 |
0.38 |
1.375 |
2.10 |
12 |
19 |
| 1-3/8 |
18 |
0.45 |
1.375 |
2.30 |
15 |
23 |
| 1-3/8 |
20 |
0.50 |
1.375 |
2.40 |
17 |
26 |
| 1-3/8 |
25 |
0.63 |
1.375 |
2.60 |
21 |
32 |
| Note : 1 mil = 1/1000th part of an inch = 0.0254 mm. |
|
Coil Lengths
| Emitter Spacing |
Nominal Diameter of 16 mm, 17 mm and 5/8" |
| 6 mil |
8 mil |
10 mil |
12 mil |
15 mil |
18 mil |
20 mil |
25 mil |
| cm |
inch |
m |
ft. |
m |
ft. |
m |
ft |
m |
ft |
m |
ft. |
m |
ft. |
m |
ft. |
m |
ft. |
| 15 |
6 |
2100 |
6888 |
2100 |
6888 |
2000 |
6560 |
1700 |
5576 |
1350 |
4428 |
1000 |
3280 |
900 |
2952 |
500 |
1640 |
| 20 |
8 |
2300 |
7544 |
2300 |
7544 |
2100 |
6888 |
1800 |
5904 |
1400 |
4592 |
1050 |
3444 |
950 |
3116 |
550 |
1804 |
| 25 |
10 |
2400 |
7872 |
2400 |
7872 |
2150 |
7052 |
1850 |
6068 |
1450 |
4756 |
1100 |
3608 |
1000 |
3280 |
600 |
1968 |
| 30+ |
12+ |
2700 |
8856 |
2500 |
8200 |
2250 |
7380 |
1900 |
6232 |
1500 |
4920 |
1150 |
3772 |
1000 |
3280 |
600 |
1968 |
| Nominal Diameter of 7/8" |
| 15 |
6 |
1300 |
4264 |
1100 |
3608 |
800 |
2624 |
900 |
2552 |
750 |
2460 |
650 |
2132 |
600 |
1968 |
350 |
1148 |
| 20 |
8 |
1500 |
4920 |
1300 |
4264 |
1000 |
3280 |
1000 |
3280 |
800 |
2624 |
700 |
2296 |
650 |
2132 |
350 |
1148 |
| 25 |
10 |
1600 |
5248 |
1400 |
4592 |
1100 |
3608 |
1050 |
3444 |
850 |
2788 |
750 |
2460 |
700 |
2296 |
400 |
1312 |
| 30+ |
12+ |
1800 |
5904 |
1500 |
4920 |
1200 |
3936 |
1100 |
3608 |
900 |
2952 |
800 |
2624 |
700 |
2296 |
450 |
1476 |
Note: 1 mil = 1/1000th part of an inch = 0.0254 mm
* Coil lengths are for coil size 560 x 280 mm (22” x 11”). Other coil sizes such as 350x160 mm (13.8” x 6.3”) and 560x160 mm (22” x 6.3”) are also available.Please contact for coil lengths of Jain Turbo Slim 12, 19, 25 mm and 9/8”, 1–3/8”. |
|
Performance Graph :
|
Ordering Specifications
 |
|
|
|
