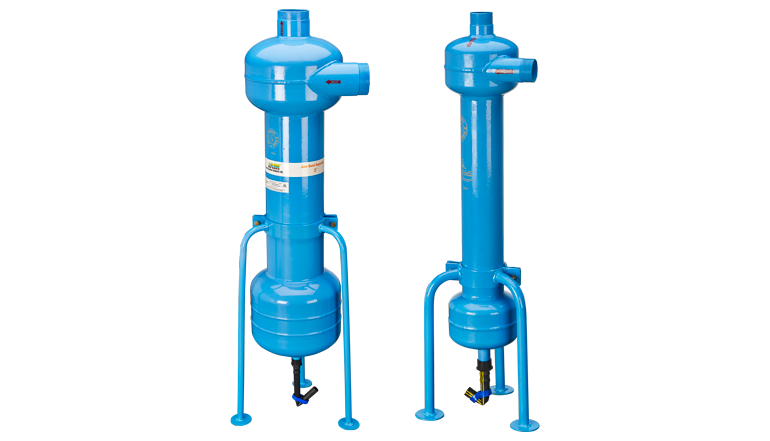

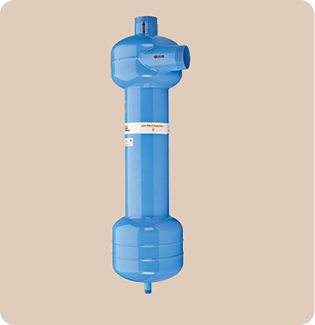

Jain Sand Separator Gold

Specification

  • Connection Sizes (inch): 1½, 02,2½,03

  • Nominal Flowrate (m³/hr): 10-15, 12-30, 20-40, 40-60

  • Maximum Oprating Pressure(kg/cm²): 10

Applications

  • Used in micro irrigation systems to remove sand and silt particles from irrigation water.

Features & Benefits

Patented Hydrodynamic Design
Innovative hydrodynamic design to create maximum centrifugal action to separate particles heavier than water
Standard Pure Polyester / Epoxy Coating for Protecting from Corrosion
Coated upto 150 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects

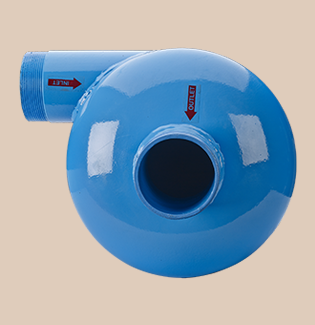

Innovative Water Inlet
Innovative water inlet provided to create centrifugal action

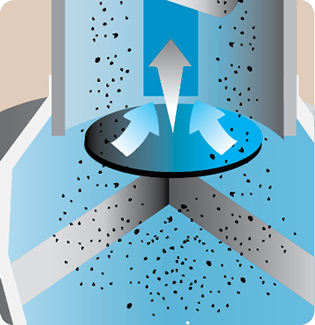

Equipped with Diffuser Plate
Special diffuser plate is provided to settle dirt particle and push them in to chamber

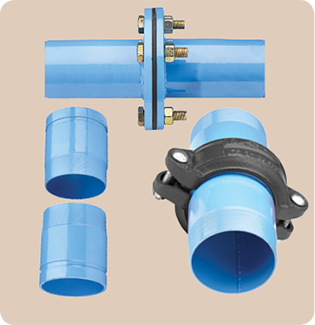

Various Optional Connections Available
Supplied with threaded, flanged (universal) & Easy Fix™ joint for inlet and outlet connection

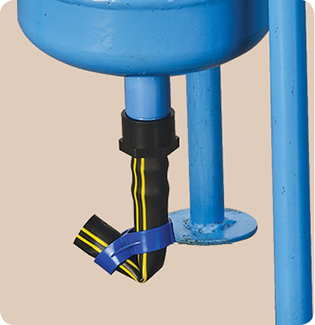

Effective Draining Facility Provided
20mm "8" shape end stop with tube provided to drain silt/ sand particles from collection chamber
