Disclean® PL - Multiple Gold

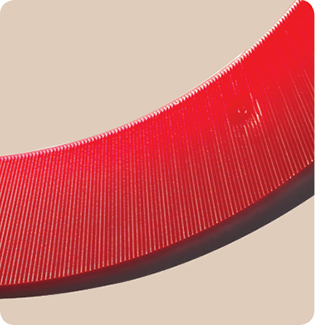

  • Radially Convergent Grooved Discs Disclean® element with strong, precision engineered and radially grooved disc to provide fine three dimensional filtration. (Flow direction Out to In)

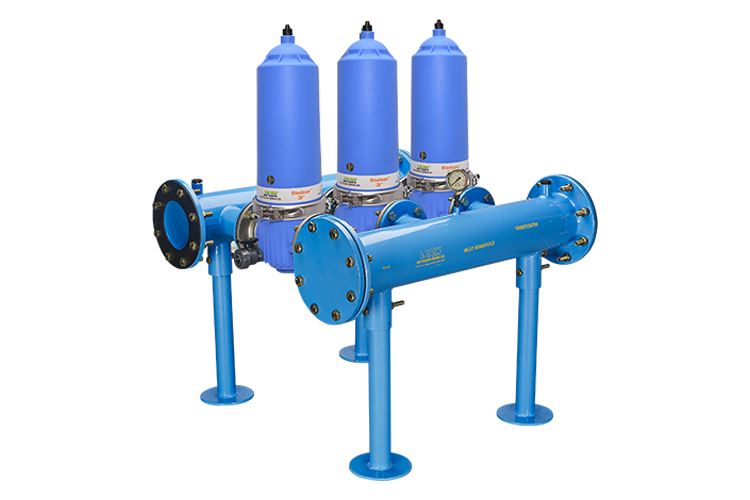

  • Special Manifold Design For multiple option mild steel manifold is designed to connect filters parallelly

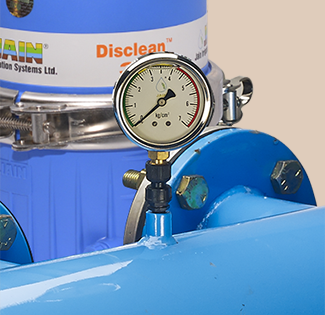

  • Equipped with Pressure Check Assembly To check pressure from inlet side & outlet side, additional pressure check assembly provided

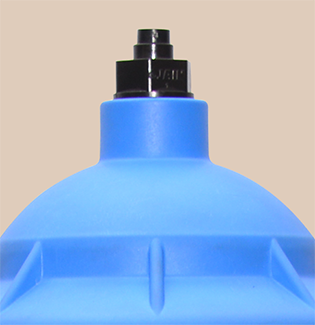

  • Separate Vacuum Releasing Facility Separate vacuum breaker provided on top of filter to release air / vacuum at start or end of system (from 2" onwards).

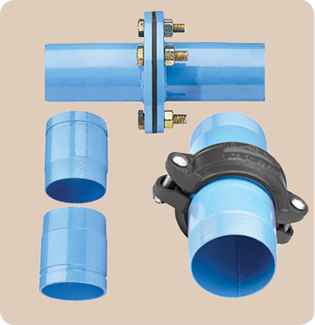

  • Various Connection Options Available Threaded connection, Flanged connection or Easy Fix connection available.

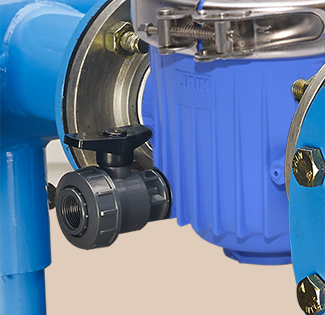

  • Separate Draining Facility Available Separate additional Drain Valve provided to remove dirt from filter
  • Specially designed manifolds suitable for installation of multiple units of Jain Super Flow Plus filter.
  • Inlet/outlet manifold coated with more than 70 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects.
  • Can also be supplied with light weight, durable HDPE manifold or chemical resistant stainless steel manifold. Please specify while placing the order.
  • Equipped with high performance, durable valves which can provide consistent performance over the years.
  • Standard end connections are BSP flanged. Please specify for other end connections.
  • On demand, semi-automatic and fully automatic options are available.
