J-Turbo Line ®
|
 |
|
|
 |
 |
Features and Specifications:
- Manufactured from high performance polyethylene.
- Use of state-of-the-art technology ensures close dimensional tolerance.

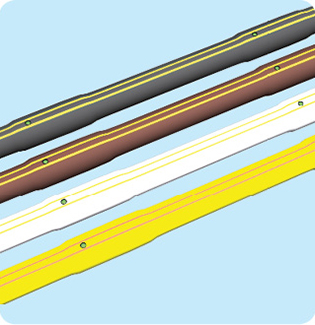

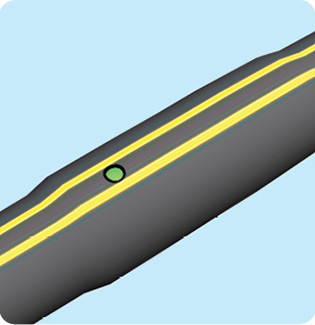

- Marked with two parallel yellow strips ‘Twin- Line®’. Symbol of quality.
- UV stabilized. No environmental effects.
- Best environmental stress crack resistances.
- Online stringent quality checks at every stage.

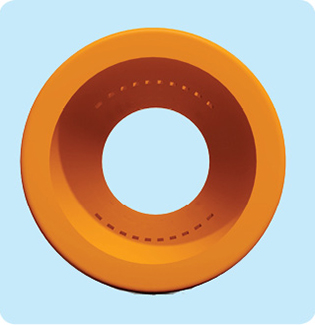

- Multiple inlet filters provides large filtration area to avoid clogging due to physical contaminations.

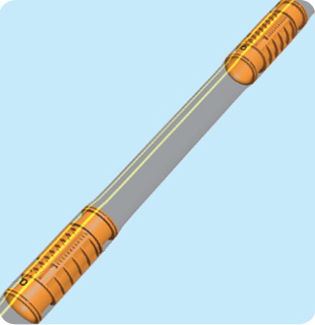

- Cylindrical shape permits wide flow path cross section to avoid clogging due to salt precipitation.

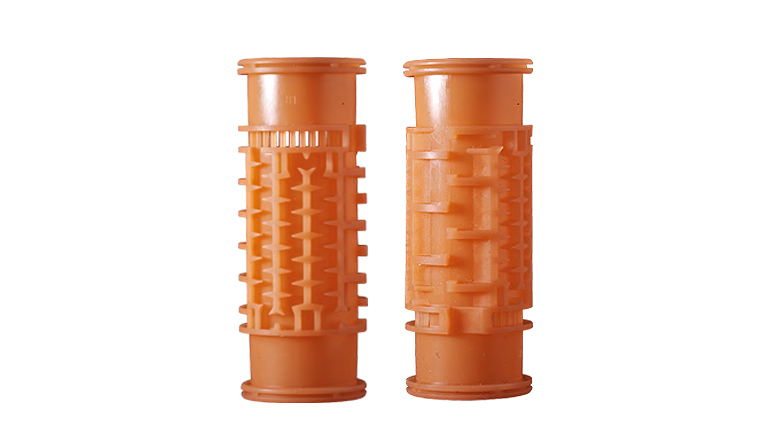

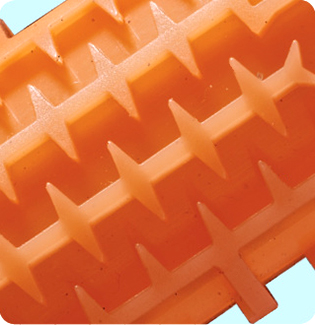

- Clog resistant turbulent flow path.

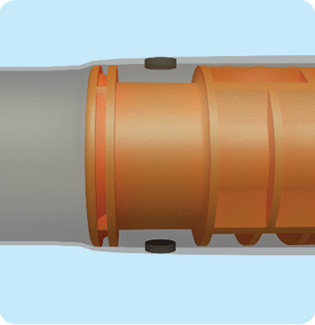

- Multiple outlets breaks vacuum inside the emitter thus avoids soil suck back into the emitter.
- Excellent CVm, manufacturers co-efficient of variation, ensures best field emission uniformity.
|
- Available in 6, 12, 16, 18, 20 mm OD sizes.
- Available in standard dripper spacing 20, 30, 40, 50, 60, 75 & 90 cms. Other spacing and group spacings are available on demand.
- Minimum 100 micron filtration recommended.
- On demand, available with rodent deterrent feature.
- Specially designed emitting pipe fittings are available. Please refer to ‘Poly Fitting & Accessories’ pages.
Applications:
- Ideal for irrigation of multi seasonal closely spaced row crops like sugarcane, cotton, banana, vegetable, strawberry, spices, floriculture, etc.
- Suitable for surface as well as sub-surface irrigation.
- Recommended to use in greenhouses and nurseries.
- J-Turbo Line® 6 mm OD is suitable for landscape and loop system of irrigation in orchards.
|
Dimensions of J-Turbo Line®
Nominal Diameter
mm |
Inside
Diameter
mm |
Wall Thickness, mm |
Standard Coil Length, m |
| Class-1 |
Class-2 |
Class-3 |
Class-4 |
| 6 |
4 .2 |
– |
– |
– |
0.9 - 1.1 |
100 |
| 12 |
10.5 |
0.4 - 0.5 |
0.6 - 0.7 |
0.8 - 1.0 |
1.1 - 1.3 |
100, 250, 500 |
| 16 |
14.2 |
0.5 - 0.6 |
0.7 - 0.9 |
1.0 - 1.2 |
1.3 - 1.5 |
100, 250, 400 |
| 18 |
15.9 |
0.7 - 0.8 |
0.9- 1.1 |
1.2 - 1.4 |
1.5 - 1.7 |
100, 250 |
| 20 |
18.0 |
0.7 - 0.8 |
0.9- 1.1 |
1.2 - 1.4 |
1.5 - 1.7 |
100, 250 |
|
|
Performance Graph-J-Turbo Line® 16mm OD (14.2mm ID)
|
Performance Graph-J-Turbo Line® 12mm OD (10.5mm ID)
|
Performance Graph-J-Turbo Line® 18 / 20mm OD (15.9/18 mm ID)
|
Technical Specifications:
*Reference
Code |
**Discharge |
Emitter
exponent (x) |
Flow
coefficient
(k) |
Coefficient
of Mfg.
Variation (CVm)= |
Flow Path
Dimensions (mm) |
Inlet Filter
Area |
| lph |
gph |
Length |
Width |
Depth |
mm² |
| J-Turbo Line® 6mm OD (4.2mm ID) |
| DL0640 |
4.0 |
1.06 |
0.48 |
4.0 |
5 |
49.0 |
0.70 |
0.94 |
23.3 |
| J-Turbo Line® 12mm OD (10.5mm ID) |
| DL1224 |
2.4 |
0.60 |
0.48 |
2.4 |
5 |
87.7 |
0.75 |
0.70 |
25.0 |
| DL1230 |
3.0 |
0.79 |
0.48 |
3.0 |
5 |
87.7 |
0.75 |
0.95 |
25.0 |
| DL1240 |
4.0 |
1.06 |
0.48 |
4.0 |
5 |
84.8 |
0.90 |
0.95 |
25.0 |
| J-Turbo Line® 16mm OD (14.2mm ID) |
| DL1624 |
2.4 |
0.64 |
0.48 |
2.4 |
4 |
125.3 |
0.80 |
0.73 |
34.0 |
| DL1640 |
4.0 |
1.06 |
0.48 |
4.0 |
4 |
118.1 |
1.10 |
1.10 |
34.0 |
| J-Turbo Line® 16mm OD (13.8mm ID) |
| DL16__ |
- |
- |
- |
- |
4 |
125.3 |
0.80 |
0.73 |
34.0 |
| DL16__ |
- |
- |
- |
- |
4 |
118.1 |
1.10 |
1.10 |
34.0 |
| J-Turbo Line® 18mm OD (15.9mm ID) |
| DL1820 |
2.0 |
0.53 |
0.48 |
2.2 |
8 |
297.7 |
0.78 |
0.82 |
9.7 |
| DL1840 |
4.0 |
1.06 |
0.48 |
4.2 |
4 |
496.2 |
1.3 |
1.42 |
19.2 |
| J-Turbo Line® 20mm OD (18.0mm ID) |
| DL2020 |
2.0 |
0.53 |
0.48 |
2.2 |
8 |
297.7 |
0.78 |
0.82 |
9.7 |
| DL2040 |
4.0 |
1.06 |
0.48 |
4.2 |
4 |
496.2 |
1.3 |
1.42 |
19.2 |
* For detailed code please refer ordering specifications.
** At an operating pressure of 1kg/cm² (14.22 psi) and for pressure Class-2 for 12 & 16mm OD (10.5mm and 14.2mm ID respectively) and pressure class-1 for 18 and 20mm OD (15.9mm and 18mm ID respectively) under standard test conditions.
* Rodent Deterrent tubing is manufactured using a special additive, by virtue of which the properties of the tubing is enhanced in such a way that once the rodent bites the tube it gets an extremely bitter taste. This effect deters the rodent from gnawing the tubing again.
Rodent deterrent tubing is available in two parallel red stripes – “Twin Line®”. |
