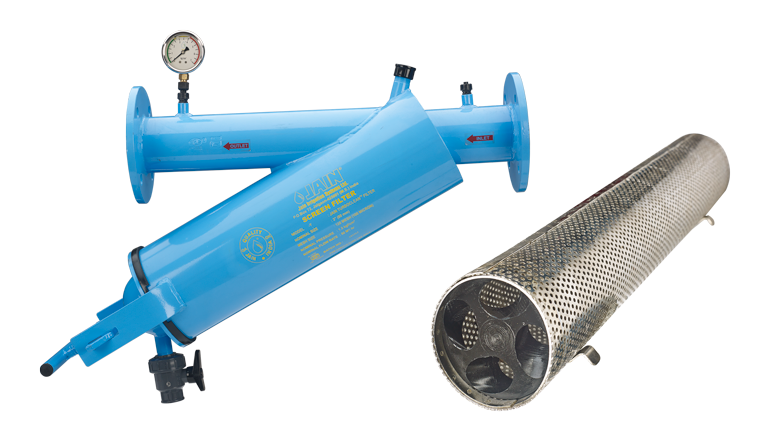

Turbo Clean ML Y

Specification

  • Connection Sizes (inch): 02,2½,03,04

  • Nominal Flowrate (m³/hr): 25,40,50,60

  • Maximum Oprating Pressure(kg/cm²): 10

Applications

  • Prevents irrigation systems clogging due to physical contaminants.
  • Useful when water quality is poor and frequent on-line flushing is necessary.

Features & Benefits

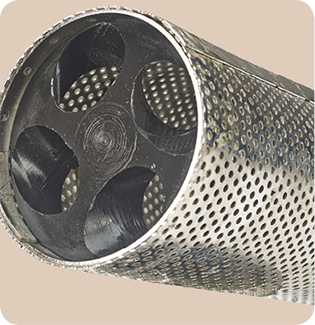

Innovative Turbo Clean Element
UniqueTurbo Clean element assures high performance and effective filtration (Flow direction In to Out)
Straight Inlet & Outlet
‘Y’ shaped body keeps inlet & outlet in one line

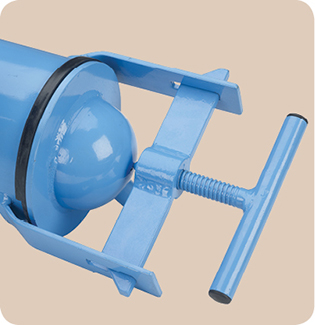

Easy for Maintenance
Strong and smooth opening and closing for cleaning disc element
Standard Pure Polyester / Epoxy coating for Protecting from Corrosion
Coated upto 150 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects

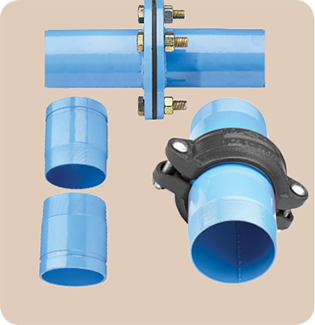

Various Connection Options Available
Threaded connection, Flanged (universal) connection or Easy Fix™ connection available

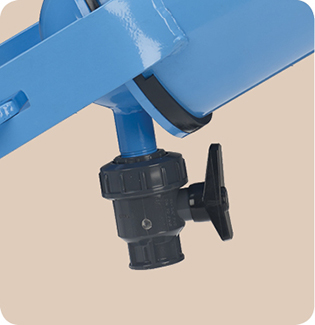

Draining Facility Available
Drain valve position on upper & lower sides of the body provides installation flexibility-
