Super Clean – Y Filter

Specification

  • Connection Sizes (inch): 02, 2½, 03,04,06

  • Nominal Flowrate (m³/hr): 25,40,50,60,80,100,150,120

  • Maximum Oprating Pressure(kg/cm²): 10

Applications

  • Prevents irrigation system clogging from physical contaminants.

Features & Benefits

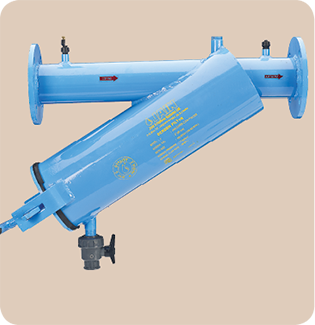

Straight Inlet & Outlet
‘Y’ shaped body keeps inlet & outlet in one line

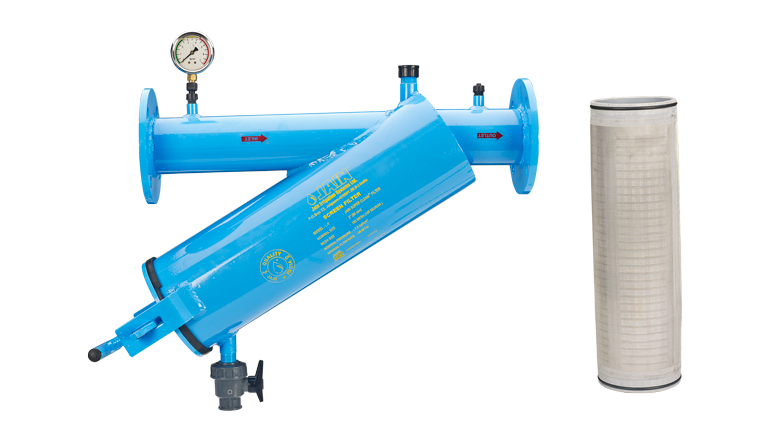

Choice of Filtration Degree
Filtration available with following degree as 80, 100, 125, 200 & 300 micron

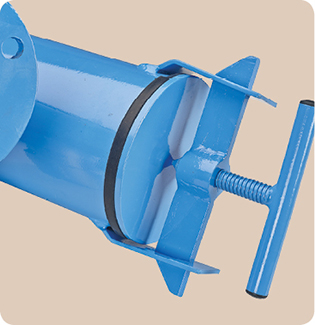

Easy for Maintenance
Strong and smooth opening and closing for cleaning screen element
Standard Pure Polyester / Epoxy coating for Protecting from Corrosion
Coated up to 150 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects

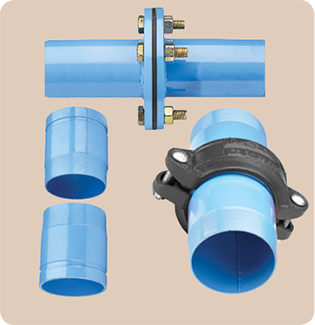

Various Connection Options Available
Threaded connection, Flanged (universal) connection or Easy Fix™ connection available

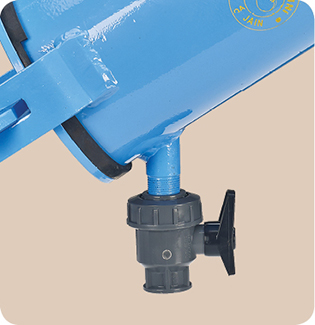

Draining Facility Available
Drain valve position on upper & lower sides of the body provides installation flexibility
