Super Clean® – L Gold




  • Special Filter Design Tangential inlet protects the screen from direct impact of sharp/angular particles
  • Unique Smart Clean Element Equipped with Smart-Clean, Unique filtering element, to assure high performance and effective filtration

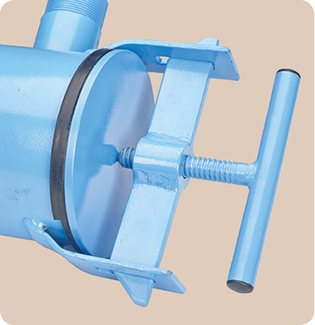

  • Easy for Maintenance Strong and smooth opening and closing for cleaning screen element

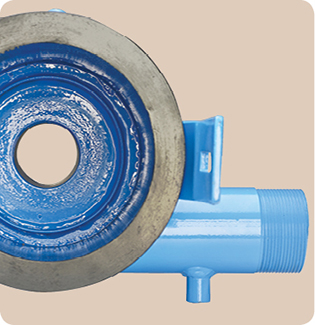

  • Standard Pure Polyester / Epoxy coating for Protecting from Corrosion Coated with more than 70 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects

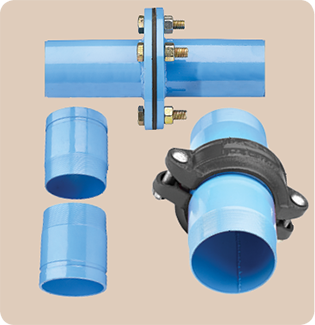

  • Various Connection Options Available Threaded connection, Flanged connection or Easy Fix™ connection available

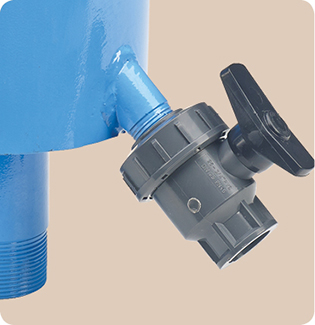

  • Draining Facility Available Drain valve position on upper & lower sides of the body provides installation flexibility
  • Mild steel Construction.
  • And ‘L’ shaped body allows installation in angular fashion.
  • Available in standard mesh of 100 micron size. (other mesh sizes available On demand).
  • Flow direction from outside of the element to inside (Out to In).
  • Maximum operating pressure 10 kg/cm² (142 psi).
  • On demand, Super-Clean filter can also be supplied with automatic flushing option.
  • Super-Clean filter can also be supplied in stainless steel body.
  • Can be supplied in multiple batteries option
