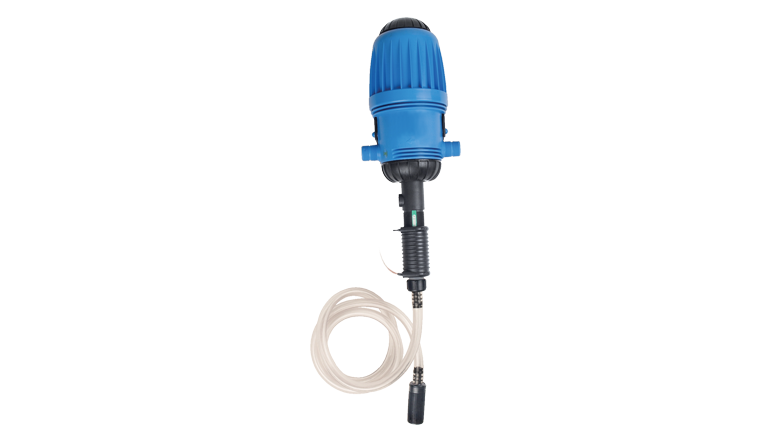

Proportional Injector Pump

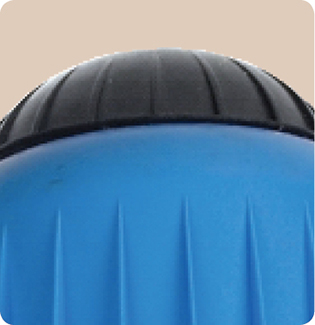

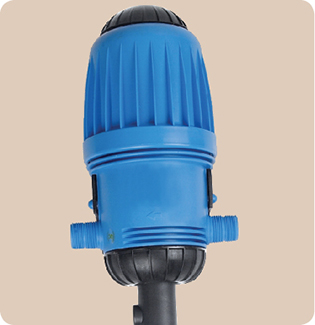

  • Innovative Compact design Innovative compact design which operated without electricity

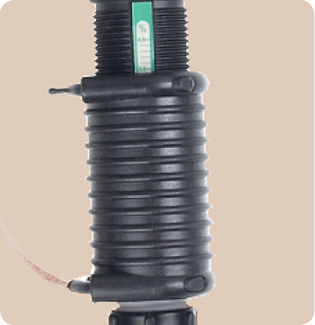

  • Accurate and Proportional Injection Rate For accurate injection, special adjusting lock arrangement provided

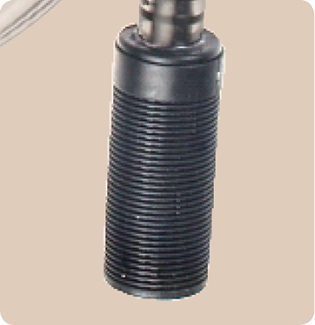

  • Additional Fine Suction Filter To avoid entry of solid particles in system, additional suction filter is provided
  • Different options available ON/OFF Knob OR Air Release option available
  • Made of strong plastic material with high chemical resistance.
  • Choice of selection on the basis of desired proportions,
    – Adjustable from 0.3% to 2%.
    – Adjustable from 0.4% to 4%.
    – Fixed dosage 6%.
  • Available in two models to provide operational flexibility,
    – With on/off system.
    – With Air Release Valve.
  • Maximum operating pressure 5 kg/cm² (70 psi). High pressure model (6 kg/cm²) available on demand.
  • Simple to install, operate and maintain.
  • Low pressure loss.
  • ¾" BSP inlet / outlet connection.
  • Dosing flow range,
    – 0.6 to 50 lph for 0.3% to 2% adjustable.
    – 0.12 to 100 lph for 0.4% to 4% adjustable.
    – 150 lph for 6% fixed dosage.
