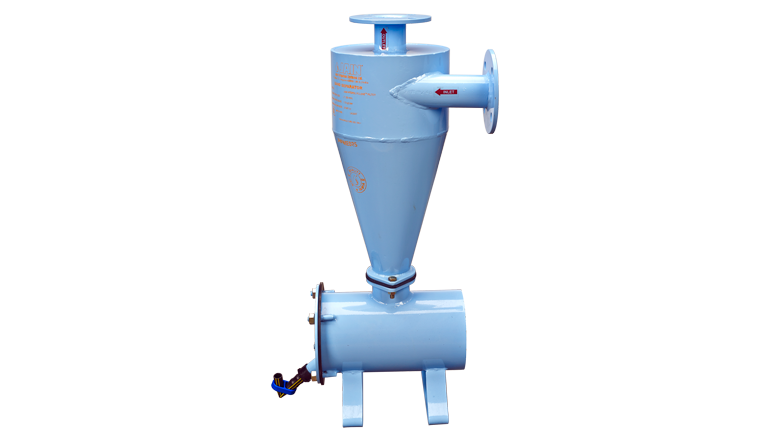

Jain Hydrocyclone Classic Filter

Specification

  • Connection Sizes (inch): 02,2½, 03

  • Nominal Flowrate (m³/hr): 25,40,50

  • Maximum Oprating Pressure(kg/cm²): 06

Applications

  • Used in micro irrigation systems to remove sand and silt particles from irrigation water.

Features & Benefits

Innovative Conical Filter Design
Hydrodynamically designed to create maximum centrifugal action to separate particles heavier than water
Standard Epoxy Coating for Protection from Corrosion
Coated upto 150 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects

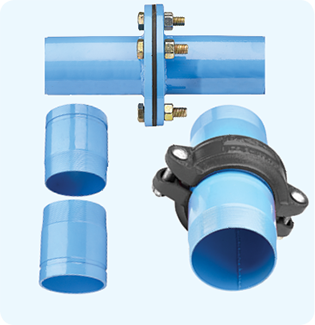

Various Connection Options Available
Threaded connection, Flanged connection or Easy Fix™ connection available

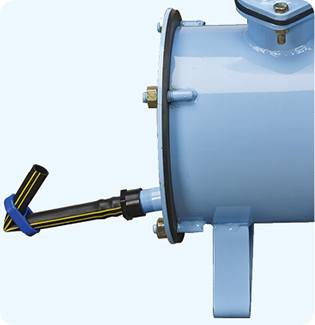

Draining Facility Available
Large volume of dirt collection chamber increases flushing interval

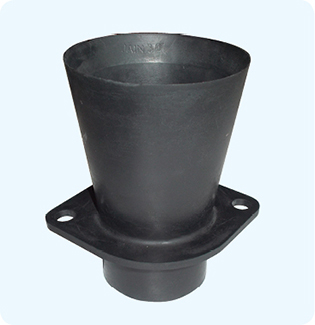

Special Rubber Cone
Special rubber cone is provided at the bottom of the cone to prevent wearing

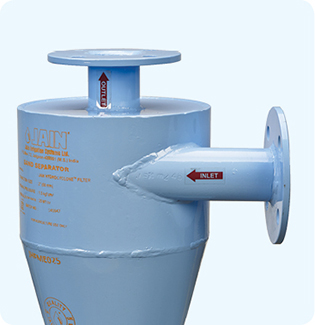

Angular Inlet & Outlet Connection
Angular inlet / outlet connection provides easiness for installation
