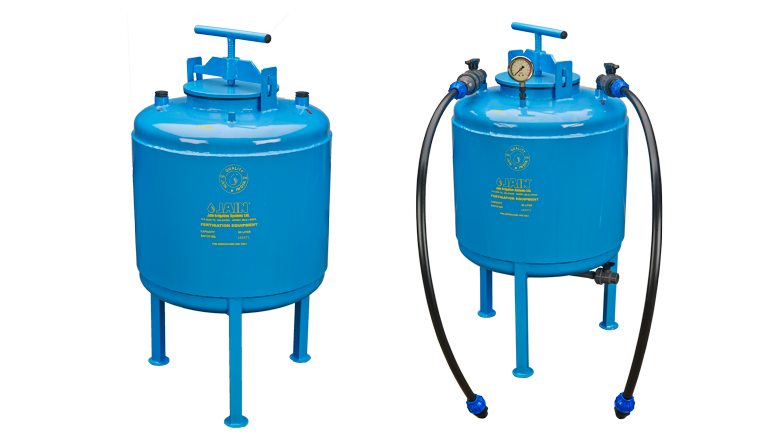

Jain Fertilizer Tank Gold




  • Standard Pure Polyester / Epoxy coating for Protecting from Corrosion Coated with more than 70 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects
  • Innovative Turbulent Inlet Turbulent inlet ensures thorough mixing of chemicals and / or fertilizers
  • Additional fine filter To avoid entry of solid particles in system, Special provision of strainer on the outlet side
  • Separate Draining facility available Special Drain port given to flush the tank
  • Mild steel construction.
  • Separate valves are provided on the inlet & outlet to control the injection rate.
  • High pressure hose assembly inlet / outlet connection.
  • Wide 8” opening for easy pouring of stock solution.
  • Maximum working pressure 10 kg/cm² (142 psi).
  • Available in 30, 60, 90, 120 & 160 liter (8, 16, 24, 32 & 42 US gallon) capacity.
  • Can also be supplied in stainless steel material
