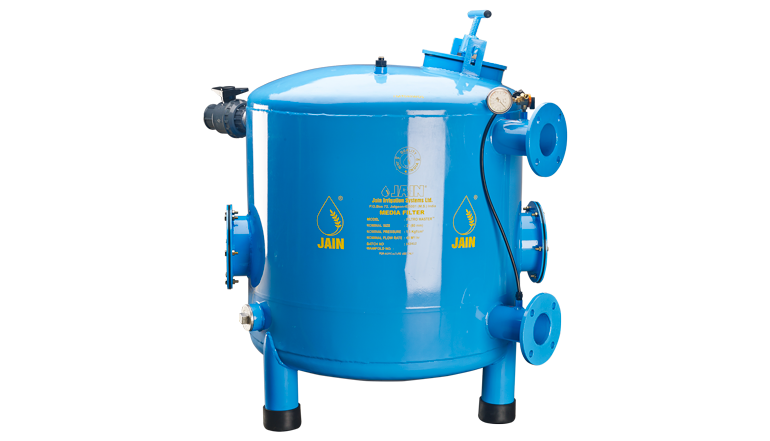

Filtro Master Gold




  • Standard Pure Polyester / Epoxy coating for Protecting from Corrosion Coated with more than 70 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects
  • Vacuum Releasing Facility Vacuum breaker provided on top of filter to release air / vacuum at start or end of system (from 2" onwards)
  • High Quality Silica Sand as Media Filtration media is crushed silica sand/quartz gravel of particle size 1 mm to 2 mm (0.039 to 0.078 inch).
  • Innovative Mushroom Assembly Innovative Mushroom assembly provided to pass filtered water in system.
  • Various Connection Options Available Threaded connection, Flanged connection or Easy Fix connection available.
  • Various Options for Backwash Available in semi–automatic or fully automatic backwash options.
  • Manufactured from mild steel as per international fabrication standards
  • Designed for uniform distribution of incoming raw water over the media bed which ensures very effective filtration & backwash
  • Maximum pressure rating 10 kg/cm² (142 psi)
  • Standard unit consists Filtro–Master tank without manifold and accessories
  • Specially designed manifold suitable for different models can be supplied as a special order

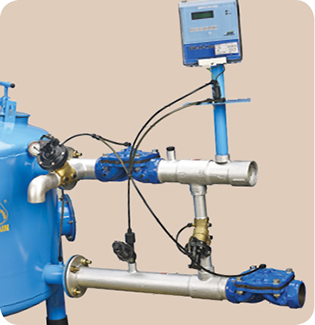

  • Manifold Options:
    – Economical plastic manifold for Filtro–Master single tank unit manual backwash option.
    – For other models, manifold assembled using metal pipes are available.
    – On demand, manifolds can be supplied in custom sizes to meet the customers requirement.
  • Filtro–Master filter can also be supplied with stainless steel body
  • Optional multi tank modules for higher filtration capacity available
