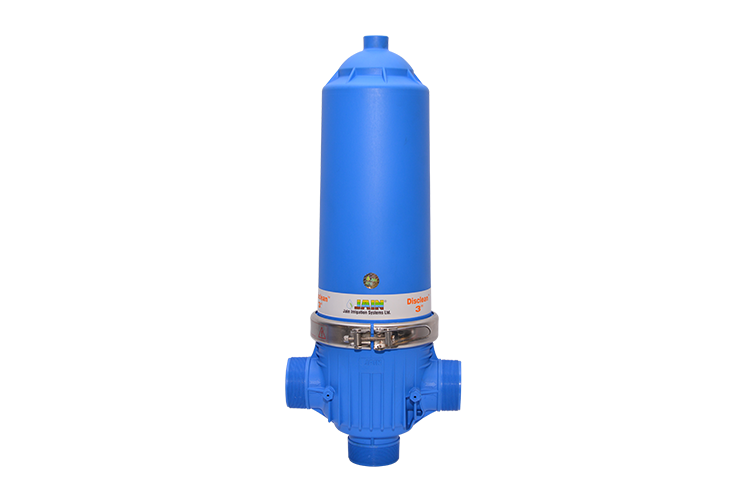

Disclean® PL Gold

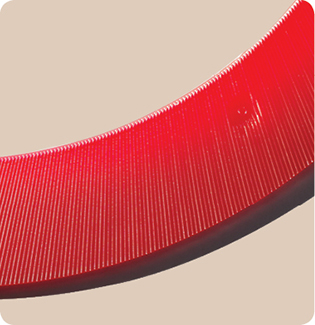

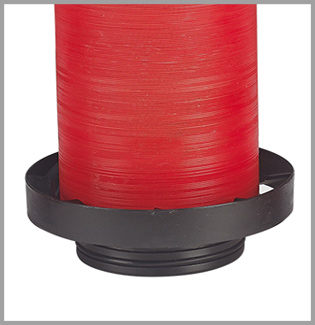

  • Radially Convergent Grooved Discs Disclean® element with strong, precision engineered and radially grooved disc to provide fine three dimensional filtration. (Flow direction Out to In)

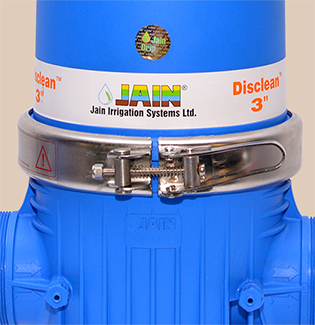

  • Easy for Maintenance Strong and smooth opening, drip–tight SS clamp closure

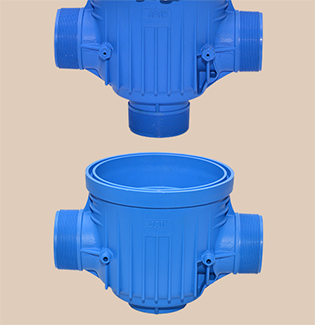

  • Angular or Straight Outlet Option Available Optional two outlet positions facilitates installation in angular or straight fashion
  • Vacuum Releasing Facility Vacuum breaker provided on top of filter to release air / vacuum at start or end of system (from 2" onwards)
  • Various Connection Options Available Threaded connection, Flanged connection or Easy Fix connection can be available
  • Draining Facility Available Additional Drain Valve provided to remove dirt (from 1.5" onwards)
  • Manufactured from special plastic alloy material which gives very high stiffness, toughness, heat and impact resistance.
  • Excellent chemical and weather resistance
  • Ribbed body construction, designed to withstand water hammer and surges in the pipe line.
  • Maximum operating pressure 10 kg/cm2 (142 psi).
  • Available in standard filtration 130 micron. (Other mesh sizes are available On demand)
  • Available in ¾", 1", 1½" 2", 2½"and 3" inlet & outlet and flow rates of 3, 7, 12, 30, 40 and 50 m3/hr (13.2, 30.8, 52.8, 132, 176 and 189 gpm) respectively.
  • Optional vortex plate can be provided to create vortex flow within the filter as an effect of which dirt particles are kept away from the filtering element. It helps to prolong the frequent cleaning of the filter. Please specify while placing the orders.
  • On demand, Disclean – PL can also be supplied with automatic flushing arrangement.
