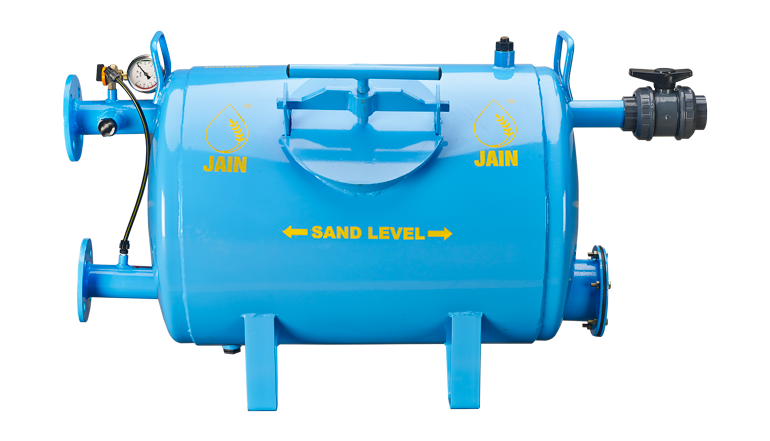

Jain Clean Master Gold




  • Standard Pure Polyester / Epoxy coating for Protecting from Corrosion Coated with more than 70 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects

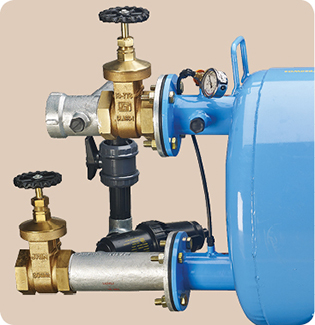

  • Unique Manifold DesignUnique design of manifold for single tank unit facilitates flushing with filtered water.

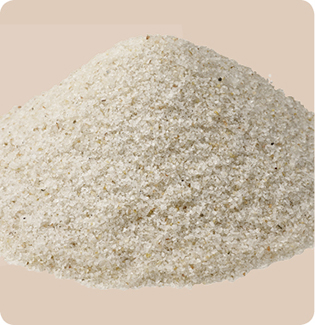

  • High Quality Silica Sand as MediaFiltration media is crushed silica sand/quartz gravel of particle size 1 mm to 2 mm (0.039 to 0.078 inch).

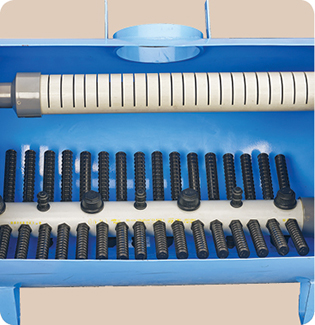

  • Innovative Candle AssemblyInnovative Candle assembly provided to pass filtered water in system.

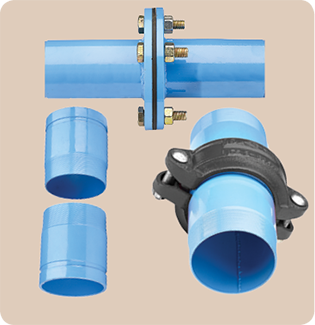

  • Various Connection Options AvailableThreaded connection, Flanged connection or Easy Fix connection available

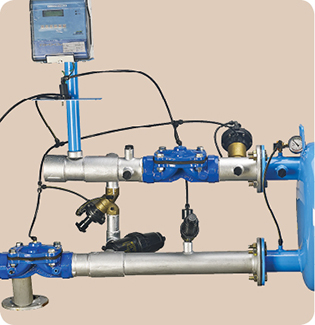

  • Various Options for BackwashAvailable in manual, semi automatic or fully automatic backwash options
  • Manufactured from mild steel as per international fabrication standards.Designed for uniform distribution of incoming raw water over the media bed which ensures very effective filtration & backwash.
  • Effective filtration of 75 micron (200 mesh).
  • High filtration efficiency due to uniform grade of filtration media (silica sand / quartz gravel) and specially designed outlet candles.
  • Maximum pressure rating 10 kg/cm2 (142 psi).
  • Clean-Master can also be supplied with stainless steel body.
  • Optional multi tank modules for higher filtration capacities available.
